Clausing EQUIPTOP Large Capacity Precision Automatic Surface Grinders - CSG2480A

Brand:

(No reviews yet) Write a Review
SKU:
CSG2480A

Clausing EQUIPTOP Large Capacity ASD II Precision Automatic Surface Grinders

Features:

  • Large capacity up to 32" x 120" Table

  • Enlarged extra strong ribbed column, ideal for heavy-duty grinding

  • Table, saddle and base are constructed of high grade cast iron and ribbed for maximum strength

  • Spindle is supported by 4 front and 2 rear precision angular contact ball bearings

  • All slideways and ballscrews fully oiled by an Automatic Continuous Lubrication System to minimize wear on slideways and ballscrews

  • Longitudinal hydraulic transverse with constant speed function or manual speed handle. Table rides on double V slideways coated with “TURCITE-B” for maximum stability

  • Cross traverse travel powered by DC servo motor and ballscrew, allows step feed and continuous infeed grinding.

  • Vertical positioning by precision ballscrew

  • Pre-set hydraulic table speed control allows operator to pre-set table speed rate and maintain the same speed rate every time the hydraulic table is engaged

State-of-the-art ASD II Control Provides Maximum Reliability and Ease of Use



  • Simple, clear, digital display and touch control panel, for easy learning and operation

  • Vertical feed powered by servo motors... for rapid up/down, micro downfeed positioning and slow up/down. Quick digital output feedback by encoders

  • Display for position of Y axis to show present spindle position. Use digital display for setting start point, rough grinding volume, start point for finish grinding (finish grinding volume), down feed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out

  • Cross traverse travel powered by DC servo motor, allows step feed and continuous infeed grinding. The speed for wheel dressing can be adjusted on the panel

Optional Accessories:

  • Electro Magnetic Chuck

  • Inclinable Magnetic Chuck

  • Chuck Control with Demagnetizer

  • Full Guarded Splash Guard

  • Coolant System with Auto Paper Feeding Device

  • Coolant System with Auto Paper Feeding Device and Magnetic Separator

  • Electro Parallel Dressing Attachment

  • Spare Wheel Flange

  • Quarts Work Lamp

  • Double Line Balance Wheel

  • Manual Pulse Generator

  • Frequency Changer

Click Here for Specifications

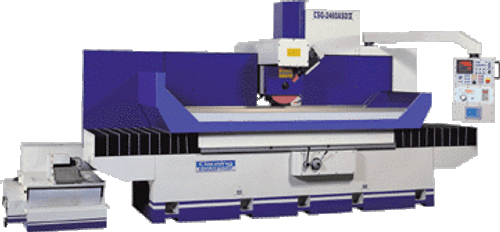

24" x 80" Large Cap. Automatic Surface Grinder CSG2480ASD II
