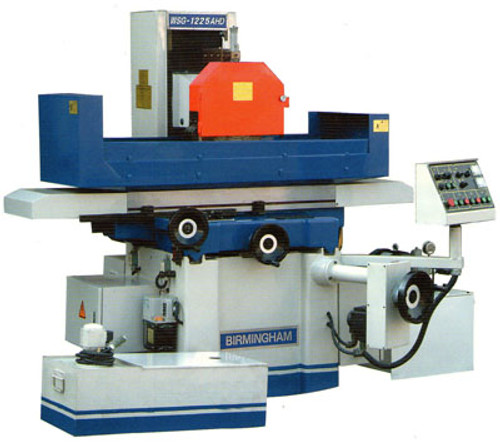

Birmingham Precision 3-Axis Auto Surface Grinders
General Features of 10-12-16 Series:
- Enlarged, double wall, strongly ribbed column, especially suitable for heavy duty grinding
- Construction of table, saddle and base is caste with high grade casting iron, strongly ribbed
- Enlarged spindle set is supported by 4 pieces of preloaded precision angular contact ball bearings for heavy duty
- Vertical, cross (double vees) and longitudinal (one vee & one flat) slideways are coated with turcite-b, provides stable movement and durable accuracy
- Automatic continuous lubrication system, all slideways and screws are fully oiled by automatic continuous lubrication system to eliminate wears on slideways & screws
- Cross feed, ball screw for cross travel, powered by AC motor
- Vertical feed, powered by servo motor
- Hydraulic table speed ranges 5-25,/min. with rack and pinion table drive for hand operation
- Proximity switch provide built-in-type (hidden) proximity switch, features safe and easy operation
- Table speed control, presettable hydraulic table speed control allows operator to pre-set speed rate, enable to get same speed rate when engaging hydraulic table every time
- Hand wheels zero-settings slip-rings with vernier on vertical handwheel, and vernier on crossfeed handwheel
Standard Equipment:
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Tool box
- Hoisting set
- Leveling pads
- Coolant
- electrical magnet chuck with demagnetize system
- AHD: X, Y Axis. HDY. Auto feed up/down servo auto feed
