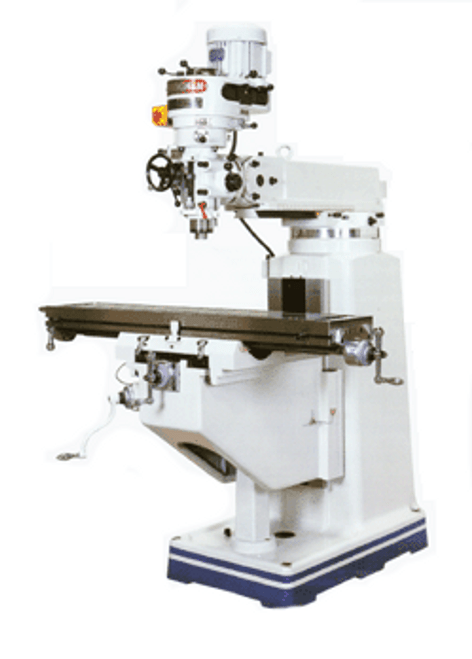

Birmingham Heavy Duty 10" x 54" Table Vertical Milling Machine

Features:

• The vertical head may be tilted to 90 degree from the vertical position to accommodate a wide range of work requirements.
• Hardened and ground square ways, column and knee.
• Power down and up feed.
• Front and rear chip guards.
• Counter balanced quill and spindle provides extreme sensitivity for operator touch.
• One shot lubricator for long & cross ways.
• Micrometer depth stop is graduated in 0.001”
• Machine castings offers maximum rigidity and stability by incorporating extra heavy ribbing in the construction.
• Each machine casting is aged and stablized
• Table Size: 10" x 54"
• Longitudinal traverse hand only: 38"
• Cross Travel: 16"
• Vertical Travel: 18"
• Quill Feeds: 0.0015", 0.003", 0.006" Rev
• Quill Travel: 5"
• Motor: 3 HP 220/440V 3Phase
• For 220V, 1Phase add $250.00
• Table Load Capacity: 800 lbs.
• Weight: 3500 lbs.
