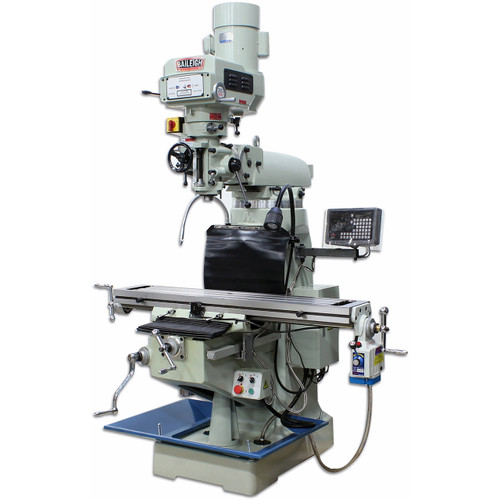

Baileigh VM-949E-VS Vertical Mill Machine, 9" x 49" Table - BA9-1019108

Looking to take the next step from a mill-drill or step pulley mill?  Take a look at the Baileigh Industrial VM-949E-VS.  This 9x49 workhorse is outfitted with a 3HP continuous duty motor requiring only 220V single phase power, making it perfect for hobbyists, small shops, and professionals alike.  This knee mill has a familiar old-school feel, while having many creature comforts not typically found in this market range.

Features:

  • Variable spindle speed by adjustable sheaves/pulleys - Control spindle RPM with the turn of a handle
  • Infinitely adjustable variable speed from 60 to 4,200rpm – Allows tooling to run at its intended speed, resulted in longer tool life and better finishes
  • R8 spindle and drawbar - Accepts the most common tooling
  • Meehanite® Casting – Rigid and dependable for decades of use
  • Spindle brake – Easier tool changes and quick spindle stops
  • 3 speed power quill feed w/ manual wheel – Perfect for boring and accurate, consistent work
  • DRO for X and Y axes
  • Power feed X axis w/ rapid – Consistent travel speed without tiresome cranking
  • Dovetail ways w/ adjustable gibs – Keep tolerances tight year after year
  • Taiwan lead screws w/ backlash adjustable nuts – Remove backlash instead of compensating for it
  • Way covers and wipers – Keep chips off ways and bed
  • Integrated coolant system w/ splash guard – Large 6-gallon reservoir in the base houses the pump.  Plumbed return line from the table eliminates overflow and messes
  • LED work light
  • One-shot lubricator – Keep up on lubrication maintenance by simply pulling a lever

Specifications:

Part Number VM-949E-VS
Stock Number BA9-1019108
Spindle Speeds 60 - 4,200RPM Infinitely Variable
Distance from Spindle to Table 18.5"
Spindle Travel 4.9"
Spindle Speed Range 60 to 4200 RPM
Spindle Feeds .003" .0015" .008"
Power Feed X axis
Table Size 9" x 49"
Range of Movement 90° Left and Right, 45° Front and Back
Spindle Diameter 3.3"
Motor 3 hp
Included Accesories Included Accesories
X Axis Travel 31-5/8""
Y Axis Travel 11-a3/16"
Z Axis Travel 13-3/4"
Spindle Taper R8
T Slots .625"
Power 220V / 1-phase
Shipping Weight 1980 lbs
Drill Capacity 2"
Shipping Dimensions 72" x 72" x 72"
