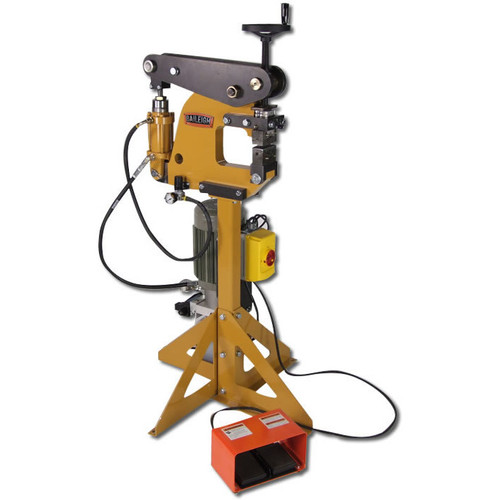

Baileigh MSS-14H Metal Forming Hydraulic Shrinker Stretcher - BA9-MDL-MSS14H

Have you ever had the thought of shrinking anything more than 16 gauge mild steel, but when you try it the machine and jaws just can’t quite cut it? The engineers at Baileigh Industrial had the same problem, this is when the concept for the MSS-14H hydraulic shrinker stretcher came from.

The MSS-14H hydraulic shrinker stretcher is 100% made in the USA from solid plate steel and has a deep 7" throat allowing even the deepest of metal working. But the MSS-14H is unlike anything on the market to date, the MSS-14H is actually hydraulically driven by a 110 volt hydraulic system on the down stroke for great power and air pressure assisted on the upstroke for faster movement. This system allows for between 30 and 40 stokes per minute.

Another unique feature of the MSS-14H shrinker stretcher from Baileigh Industrial is the tooling. The MSS-14H comes standard with one set of four jaws; this set of jaws can do both shrinking and stretching simply by turning the jaws around and installing the correct "pads". This is a hydraulic/pneumatic operated machine which is controlled by a foot pedal allowing for hands free operation. If that wasn’t enough the MSS-14H has a mild steel capacity of 14 gauge and an aluminum capacity of 12 gauge.

Unique on the market, Baileigh's patented hydraulic shrinker stretcher lets you shape thick sheet metal at amazing speeds. Foot pedal operation and magnetic tooling also save you time.

• This Baileigh shrinker stretcher is made in the USA.
• 14 gauge mild steel and 12 gauge aluminum capacity.
• Runs on 110-volt single-phase power, so you can use it anywhere.
• 7" throat enables you to work deep into a piece of sheet metal.
• Hydraulic/pneumatic system drives 30 to 40 strokes per minute.
• Hydraulic downstroke delivers greater power than a manual model could, while the air pressure-assisted upstroke moves faster.
• Foot pedal control allows for hands-free operation.
• Comes standard with a set of 4 quick-change magnetic jaws.
• You can switch between shrinking and stretching in seconds simply by turning the jaws around.
• Turn the wheel on top of the shrinker stretcher to adjust the jaw gap.
• Solid plate steel frame gives the machine enough structural strength to stay accurate at maximum capacity for many years.
• Baileigh covers this metal shrinker stretcher machine 1-year parts warranty.
• You can depend on lifetime technical support by phone from Baileigh team of reps, all with hands-on machine experience.
• Shrinker stretcher arrives fully assembled. Just plug it in and go.
• Replacement jaws and other parts are in stock at a Baileigh warehouse for quick shipping.
• Save money by sending the jaws to Baileigh for resurfacing. No need to buy new jaws every time they wear down!

Recommended for: Any automotive, aeronautical, or metalworking shop that does a lot of shrinking and stretching and needs to work with thick material.

Note: To run the MSS-14H, you'll need an air compressor, available at most hardware stores. The size of the compressor depends on how often you plan to use the machine.

Specifications:
