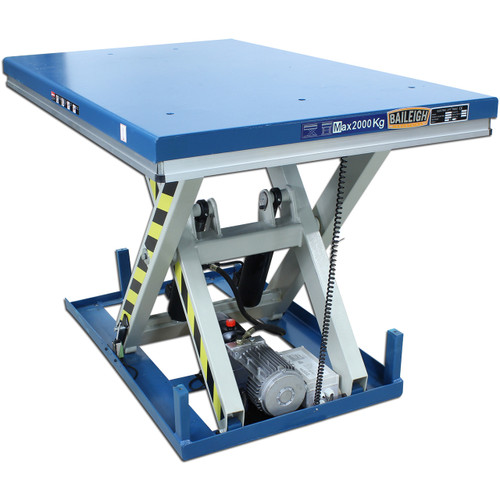

Baileigh HLT-4400 Hydraulic Lift Table, 4400 lbs. Capacity - BA9-1013589
The Baileigh Industrial HLT-4400 hydraulic lift table is the perfect addition to any shop. This industrial lift table makes work easy by hydraulically lifting to the proper work height. The dual cylinder system can easily handle up to 4400lbs. The HLT-4400 hydraulic work table has many safety features built-in which make it ANSI and ASME approved.
- 4400 lbs. capacity
- 63" x 39" table
- 9" min./39" max-height
- 25 Sec to max-height
- Full function safety bar emergency stop
- Hand-held pendant control
- Self-lubricating bearings for long life
- ANSI/ASME approved
- 220V single phase
Specifications:
| Part Number | HLT-4400 |
| Stock Number | BA9-1013589 |
| Table Size | 63" x 39" |
| Base Size | 48" x 31" |
| Max. Table Height | 39" |
| Min. Table Height | 9" |
| Travel Speed | 25 sec. for Max. Height |
| Capacity | 4400 lbs. |
| Power | 220 Volt Single Phase |
| Shipping Weight | 685 lbs |
| Special Notes | Down Pressure Saftey Switch Included |
| Shipping Dimensions | 69" x 44" x 21" |
Baileigh HLT-4400 Hydraulic Lift Table, 4400 lbs. Capacity
