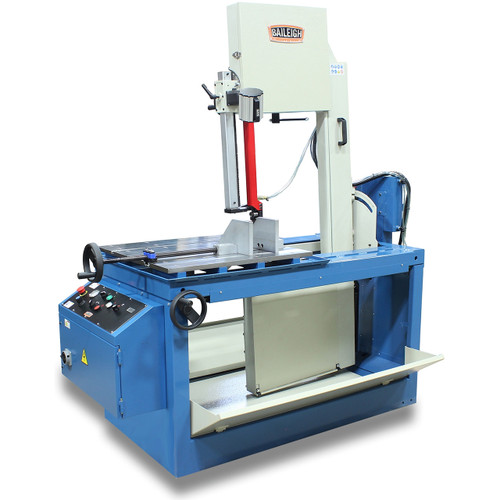

Baileigh BSVT-18P Vertical Tilt Frame Band Saw - BA9-1226643

Brand:

(No reviews yet) Write a Review
SKU:
BA9-1226643

Baileigh

Baileigh BSVT-18P Vertical Tilt Frame Band Saw - BA9-1226643

Vertical tilt frame bandsaws have been a staple of the heavy industrial scene for a long time and are very popular for cutting structural steel.  The BSVT-18P is a pnuematically operated semi-automatic tilting frame veritcal band saws that will make quick work of any project that you may have.

  • 2 hp motor runs on 220-volt three-phase power.
  • Wide 18" throat depth.
  • 23" maximum cutting thickness.
  • Miters 45 degrees left and right.
  • Accepts standard 1-1/16" blades.
  • Machined plate steel table provides a sturdy work area.
  • Variable speed from 84 - 312 fpm allows you to adjust the speed for eah application.
  • Change the speed easily with the turn of a knob.
  • Digital readout lets you see the exact blade speed, so you can choose the right settings for your material and extend blade life.
  • Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
  • Halogen work light lets you see what you’re cutting more clearly.
  • Covered by a 1-year parts warranty.
  • Includes lifetime technical support by phone. You can call Baileigh's team of experienced reps whenever you need help with this metal-cutting band saw.

Recommended for: Any shop that cuts a variety of heavy structural materials.

Specifications:

Part Number BSVT-18P
Stock Number BA9-1226643
Solid Round Capacity 11-13/32"
Head Miter 45° Left and Right
Coolant System Yes
Coolant Capacity 18.35 Gallons
Rectangle Capacity 20" x 16-1/4"
Miter Angle 45° - 0° - 45°
Motor 2 hp
Maximum Thickness 20"
Included Accesories Included Accesories
Throat Depth 16-1/4"
Working Height 39.5"
Capacity Rectangle 45° 13-57/64" x16-l/4" - Right / 13-19/32"xl6-l/4" - Left
Blade Guide Bearing and Carbide
Blade Length 168.5"
Blade Speed 84 - 312 fpm
Blade Thickness .035"
Max. Vise Opening 18"
Motor Coolant 1/8 hp
Power 220V 3-phase
Shipping Weight 1510 lbs
Shipping Dimensions 82" x 38.2" x 87.7"
Baileigh BSVT-18P Vertical Tilt Frame Band Saw
