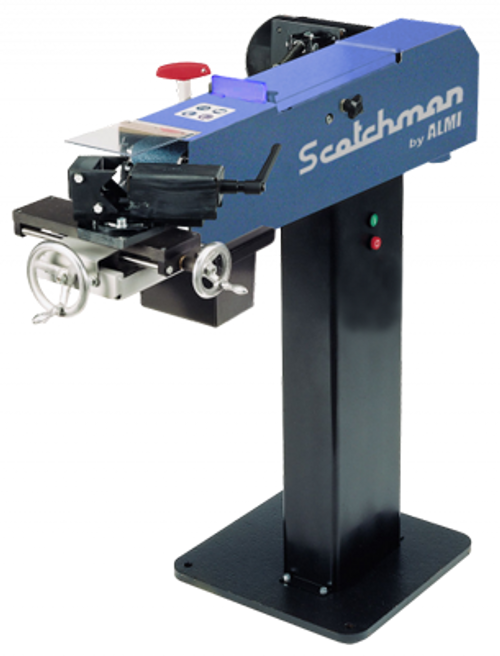

Scotchman Tube & Pipe Grinder Notcher AL 100U-01

Features:

  • Produces Gap-free Fits Ready for Welding
  • Operated with Hand Lever Feed Handle and Manual Vise Adjustment Left and Right
  • Smooth Operation with Minimal Vibration
  • Notches via Adjustments Straight= 90° to 30° in Tube or Pipe from 3/4" to 3" Diameter in Seconds
  • Two Axis Precision Crossfeed Table with Hand Lever Feed Handle and Manual Vise Adjustment Left and Right
  • Heavy Duty Frame and Base Construction
  • Mandrel Centerline Adjustment
  • One Vise Holds All Pipe and Tube Sizes
  • Top-mounted Deburring Surface
  • Easy Setup with Vise Graduated in Degrees
  • 13 Mandrels available to Ensure correct Gap-free Fits
  • Supplied with 2 Belts and Two Pipe Mandrels (1-1/4" & 1-1/2")
  • Tool-free Belt and Mandrel Change over
  • Belt Tensioning System Simplifies Tensioning the Grinding Belt
  • Grinding Belt can be Tensioned Quickly using the Hexagonal Spanner Supplied with the Machine
  • Grinding Rollers can be changed in Seconds
  • Warranty: Three Years

Specifications:

Grinding Capacity 3/4" to 3" O.D 19 mm to 76 mm
Angle Range Straight=90° to 30°
Belt 4" x 78-3/4" x 19-1/2" 100 mm x 2000 mm
Belt Speed 98.4 Feet Per Second
Speed 3420 RPM
Motor 4 hp 3ph
230/460v

Motor (Optional) 4 hp 1ph
230v

Dimensions 59" x 47" x 19-1/2" 1499 mm x 1194 mm x 495 mm
Weight 419 lbs 190 Kg
Tube & Pipe Grinder Notcher, 1PH AL 100U-01
