Adam GK Indicator

Brand:

Call for Pricing

(No reviews yet) Write a Review

Adam Equipment

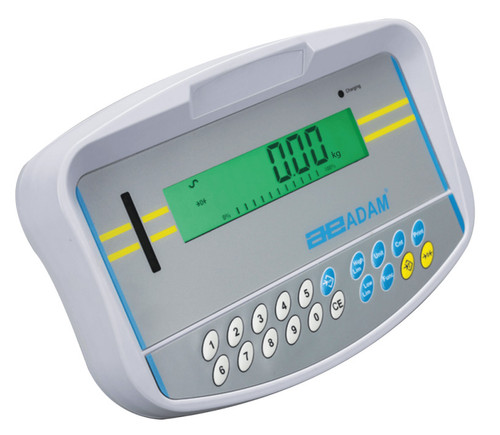

Adam GK Indicator


An affordable indicator with full keypad and smart features, GK offers a simple user interface for quick operation. The GK housing is constructed of ABS plastic, while a backlit LCD features large digits and capacity tracker. GK comes with a wall bracket for easy, secure mounting. Connect the GK to any platform to perform numerous applications, including weighing, percentage weighing, checkweighing, parts counting and animal/dynamic weighing.


Hardware:

  • Color-coded keys facilitate quick recognition of the most frequently used buttons
  • RS-232 interface is available to provide speedy connection to computers and printers
  • Solid ABS housing is durable for industrial uses
  • Splash-proof housing, keypad and display are easy to clean
  • Wall-mount bracket for placing indicator on vertical surface


Software:

  • Checkweighing with audible alarm
  • External calibration allows for verification and adjustment with weights
  • Parts counting with freely selectable sample sizes
  • Parts counting optimization automatically refines piece weight as parts are added
  • Preset tare function speeds the process of repetitive weighing
  • Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
  • Programmable capacity and readability for a variety of applications
  • Quick and easy configuration using the keypad
  • Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
  • Zero-tracking feature ensures display returns to zero reading


Display:

  • Vivid, backlit LCD easily visible in any lighting conditions
  • Programmable backlight can be set to "always on," "always off" or "light only when weighing"
  • Capacity tracker built into display for easily monitoring possible overloads


Power:

  • Rechargeable battery included for operation almost anywhere
  • Programmable auto power-off to save energy


General Specifications:

  • Weighing units: kg, lb, lb:oz, oz, N
  • Interface: RS-232
  • Power Supply: 15VDC 800mA adapter / Internal rechargeable battery
  • Display: Backlit LCD with capacity tracker with 20mm-high digits
  • Calibration: External calibration
  • Housing: ABS plastic
  • Operating Temperature: -10° to 40°C / 14° to 104°F


Applications:

  • Weighing
  • Parts counting
  • Percentage weighing
  • Checkweighing
  • Checkcounting
  • Dynamic / animal weighing


Shipping Weight & Dimensions (WxDxH):

  • Weight: 7 lb / 3 kg
  • Dimensions: 9.1" x 11.8" x 8.3" / 230 x 300 x 210 mm



Click to View Manual

Click to View Data Sheet
