ACER 17" Dynamic Engine Lathes

Brand:

Call for Pricing

(No reviews yet) Write a Review

Acer

ACER 17" Dynamic Engine Lathes


Features:

  • Headstock's rigidity and durability are derived from high tensile cast iron (FC25).
  • A uniquely designed gear box offers a comprehensive range of inch and metric threads without changing gears.
  • Simple laid-out electric cabinet is easy to maintain and easy to fix.
  • Saddle is coated with Turcite-B to provide wear resistance.
  • Three point support on the spindle is the key to heavy cutting.
  • Triangular ribbed bed with annealing process on the casting allows no deformation to occur on the slideways.
  • A 2-1/4" diametered quill, graduated in inch and metric scales, is made from low carbon steel (SCM4), and it is hardened and ground to its accuracy.
  • Electro-trochoid pump forces lubrication oil to all running parts inside the headstock.
  • Oil bathed cross lead screw (optional).
  • Oil flood indicator.
  • Hand chip guard.
  • Output shaft of the gear box is designed with a safety pin to protect from damage.
  • Power disconnecting limit switch.
  • Drip-proof 7.5 HP spindle motor.
  • Mechanical drum type brake is easy to adjust and maintain.
  • Hardened & ground bedways at Rockwell C 55
  • Hardened & ground cross slideways.
  • Saddle lock device for heavy cutting.
  • Triangular bed web for rigidity.
  • Oil bathed longitudinal lead screw.
  • Forward/stop/reverse lever with safety device.
  • Oil level indicator.
  • Multi-position length stop.
  • Machine bed with FC-30 casting iron.
  • Machine weighs in at 3,500 / 3,950 / 4,400 lbs.


Standard Accessories:

  • 10" D1-6 3-Jaw Chuck
  • 4-Jaw Tool Post
  • Steady Rest (0.6" - 7")
  • Halogen Light
  • Chuck Guard w/Emergency Stop
  • Built in Coolant System
  • Full Length Splash Guard
  • 14" Face Plate
  • Toolbox with Tools

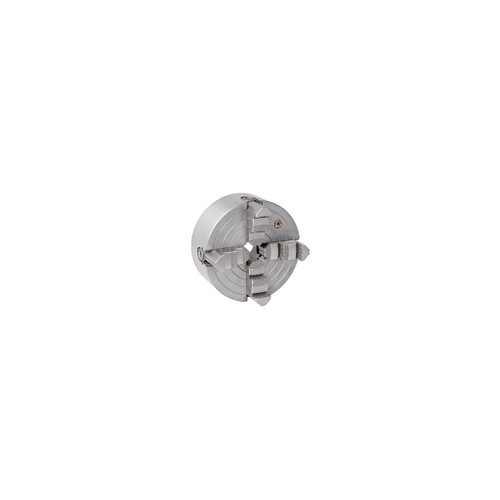

  • 9" 3-Jaw & 12" 4-Jaw Adapter Plates


Special Package Price Includes:

  • Dynamic 17" Series Lathe w/Standard Accessories, "Newall" C80 2-axis Digital Readout & Pre-Installation at ACER Warehouse


Click Here for Specifications
