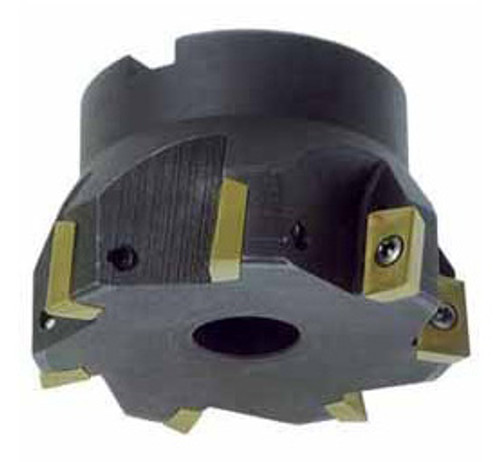

Indexable Face Mill, 1-1/2" Diameter - 954-015

Brand:

(No reviews yet) Write a Review
SKU:
954-015
Cutter Diameter:
1-1/2"
Arbor Hole:
1/2"

Toolmex Cutting Tools

Indexable Face Mill, 1-1/2" Diameter

6-954-015


APX-D1.50-.500-4-16. 1-1/2in 90° Arbor Mounted Face Mill for APKT 16 Inserts


RH Cut

  • New single design.
  • Great effiency.
  • Cutters are provided with Torx Key, set of Locking Screws, 1 Arbor screw and 1 Hex Key.


Tool Angles:

Cutting Rake Angle: 12 degrees to -6 degrees
Radial Rake Angle: -12 degrees to -6 degrees
Axial Rake Angle: 7 degrees to 10 degrees
Setting Angle: 90 degrees

Uses All Standard Shell Mill Arbors


Technical Data:


Diameter D   1.5"
Arbor Hole d   0.5"
Height H   1.578"
Depth of Cut a   0.625"
No. of Inserts   4
Insert   APKT 1604
Tolerances
Tolerance: DØ = mm +/-0.65 mm
Tolerance: dØ = mm +0.018/-0.0 mm
Tolerance: H = mm +/-0.15 mm
Spare Parts
Torx Key T15 6-998-015
Insert Screw   6-998-4008M
Arbor Screw   6-999-254
Hex Wrench   6-999-585
Anti Seize Lube   290-ASEIZE-03
