Dake Vertical Bandsaw, Work-A-Matic SXC, 110/220V 1-phase - 88040

Brand:

(No reviews yet) Write a Review
SKU:
88040

Dake

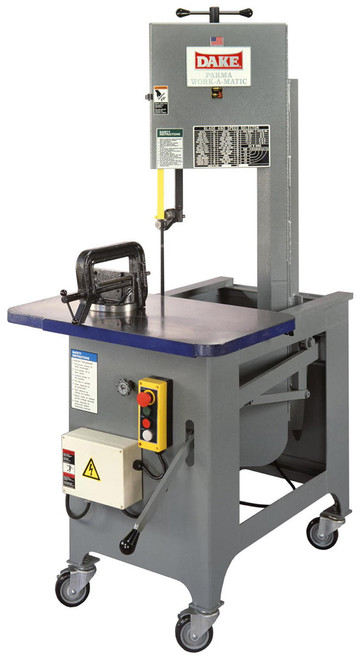

Dake Vertical Bandsaw, Work-A-Matic SXC, 110/220V 1-phase - 88040


Great for production and model shops. These SXC Parma vertical bandsaws have what you need: gravity feed, fast set up, a variable feed rate system, low voltage controls, and enclosed guarding.


Features:

  • Gravity feed. The blade feeds into the material by gravity, which allows for hands-free operation
  • Fast set up. Effortless changes between a cut off saw, contour saw and rip saw. Fast set up makes it ideal for production
  • Low voltage controls with thermal overload and E-stop for emergency stop and start situations
  • Frame and base are heavy duty welded steel for rigidity. Built to handle the toughest environments
  • Variable feed rate system with hydraulic feed regulator that features a convenient front mounted flow control valve. Cut almost any metal or other hard material - four blade speeds and infinitely adjustable blade pressure. Hydraulic feed regulator prote.
  • Enclosed guarding for step pulley and bottom wheel assembly


Standard Equipment:

  • C-clamp assembly
  • One standard blade


Specifications:

Model SXC
Order Number 88040 / 88041
blade width 1/4 - 3/4"
blade length 120"
blade speed 70/140/270/540
A blade travel 9"
B maximum work height 14-1/2"
cut capacity 9 x 14-1/2"
electrics 1 or 3
horsepower 1
FxC table precision ground 29 x 18"
D work height 36-1/2"
wheel diameter 14
E machine height 66"
F machine width 29"
G machine depth 40"
weight (lbs) 810"



See all Dake Vertical Bandsaws, Work-A-Matic SXC
