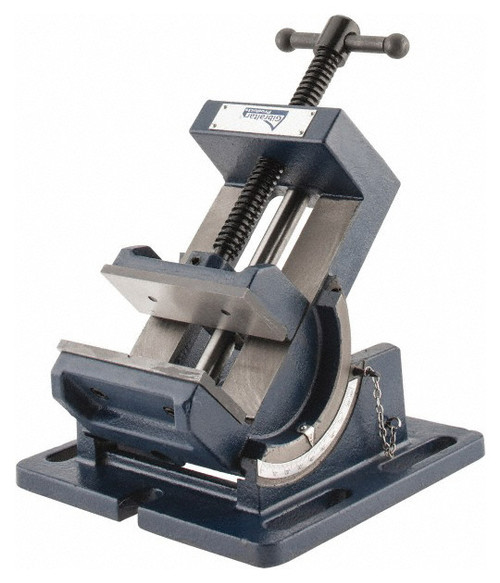

Gibraltar Industrial Angle Vise, 4" Jaw Width
Swivel Machine Vise
- Full 90° adjustment from horizontal to vertical
- Graduated 360° swivel base can be set at any angle
- Bed and base are parallel to 0.004"
- Jaw surface is square to 0.002"
- Base has 5/8" keyways and 2 bolt slots
- Vise secured by precision locking bolts
- Angle vises are capable of tilting the workpiece for angled drilling and milling.
- Swivel vises are designed to rotate 360 degrees without moving the workpiece from the vise.
Specifications:
| Jaw Width | 4" |
| Jaw Opening Capacity | 4" |
| Throat Depth | 1-1/8" |
| Orientation Type | Angle |
| Number of Stations | 1 |
| Base Motion Type | Swivel |
| Operation Type | Manual |
| Jaw Depth | 1-1/8" |
| Precision | No |
| Overall Length | 12" |
| Overall Height | 6.25" |
