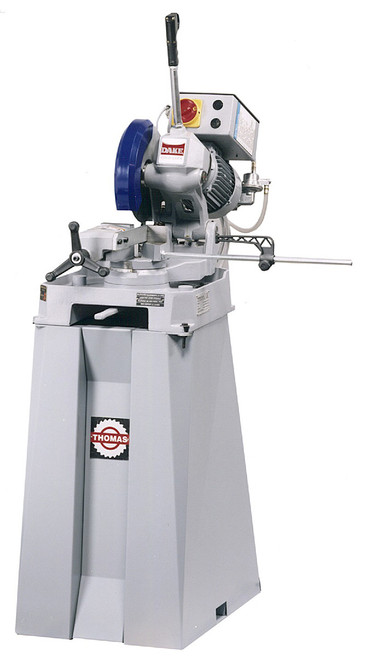

Dake Technics 250 Manual Cold Saw - 74250

Brand:

(No reviews yet) Write a Review
SKU:
74250

Dake

Dake Technics 250 Manual Cold Saw - 74250


The best cold saws in the business all have one thing in common…the Dake name. These Dake Technics and Super Technics Cold Saws have heads that rotate 45º right and left of center. They also have an adjustable hinged pivot, a cam-activated vise with gib adjustment and anti-burr arm (except 250), and a mechanical coolant pump with flow control adjustment. Model 350 features an adjustable clutch and will rotate to 90º for slot cutting operations.


Features:

  • Head rotates 45º right and left of center for mitering
  • Dependable oversized spindle and gear assembly with steel spindle and bronze gear
  • Bronze gear with tapered roller bearing support
  • Reliable mechanical coolant pump with flow control adjustment
  • 350 model features an adjustable clutch for more efficient operation, and will rotate to 90º for slot cutting operations
  • Adjustable hinged pivot
  • Additional ball bearing support of hardened and ground spindle shaft to prevent failure
  • Cam-activated vise with gib adjustment and anti-burr arm (except 250)
  • 315 & 350 models all have 24V at controls, E-Stop, low voltage protection, and thermal overload protection


Standard Equipment:

  • Blade
  • Pedestal base
  • Tool kit
  • Gallon of coolant
  • Adjustable positive stop


Specifications:

Model Cut 250
Order Number 74250
maximum blade diameter 10"
motor horsepower 1.2
voltage 110-volt
phase 1
speeds 44
weight 378 lbs.
solid round 90˚ capacity 1-1/4"
solid round 45˚ capacity 1"
tube 90˚ capacity 2-3/4"
tube 45˚ capacity 2-3/8"
square 90˚ capacity 2-1/2"
square 45˚ capacity 2-1/8"
rectangle 90˚ capacity 3-7/8" x 1-3/4"
rectangle 45˚ capacity 2-1/2" x 1-7/8"
A work height 37"
B overall front to back head up 35"
C height 61"
D floor space left to right 21"
E floor space front to back 20-1/4"



See all Dake Technics & Super Technics Manual Cold Saws

Dake Technics 250 Manual Cold Saw
