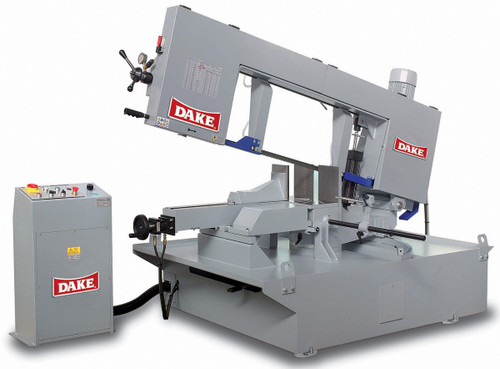

Dake Horizontal Dual Mitering Bandsaw SAR 440 SA, 220V 3-phase - 74025
Heavy duty bandsaw miter cuts in both directions.
Features:
- Rugged design with cast iron saw frame and vise to eliminate vibration
- Hydraulic head return
- Pedestal mounted controls for easy operation
- SAR 440 SA ONLY Heavy duty mechanical variator for maximum cutting torque when making variable speed changes
- SAR 440 SA ONLY Hydraulic vise for fast setups
- Head down feed is gravity fed and controlled by way of an infinitely variable flow control valve. The flow control allows for presetting the down feed rate and retaining this setting at the end of the cut. To minimize dead air cutting, raise the head to preset position.
- Blade guides are replaceable carbide inserts and adjustable roller bearings
- Replaceable cutting plate to allow for wear and maintain precision cutting
- SAR 440 SA ONLY Hydraulic band tensioning with automatic shutoff for blade breaks
Standard Equipment:
- Vises — Quick set locking for convenient positioning and fast set ups
- CE certified electrical — Low voltage controls, thermo overload, and low voltage coil
- Stock stop
- Head feed — Hydraulic-regulated cutting head decent speed
- Recirculating coolant system
- Multimode feature
Specifications:
| Model | SAR 440 SA |
| Order Number | 74025 |
| voltage | 220-volt 3-phase |
| motor horsepower | 3 |
| blade speed | 90-450 |
| weight | 3,460 lbs. |
| solid round 90˚ capacity | 17-1/4" |
| solid round 45˚ left capacity | 17-1/4" |
| solid round 60˚ left capacity | 13-3/8" |
| solid round 45˚ right capacity | 17-1/4" |
| solid round 60˚ right capacity | 12-1/2" |
| A worktable height | 29-1/2" |
| B height | 98" |
| C floor space left to right | 98" |
| D floor space front to back | 118" |
Dake Horizontal Dual Mitering Bandsaw SAR 440 SA
