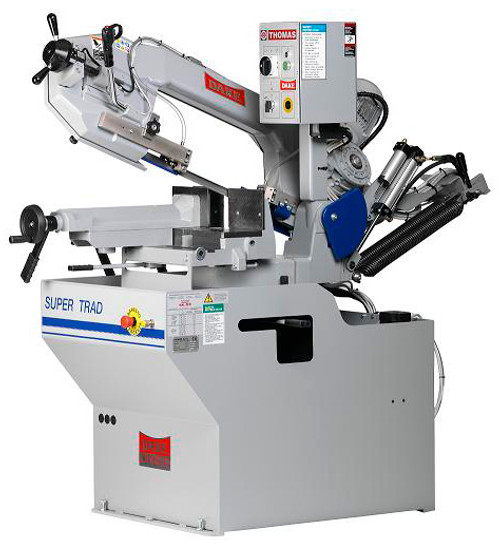

Dake Horizontal Mitering Bandsaw, TRAD301, 440V 3-phase - 74023-4

Brand:

(No reviews yet) Write a Review
SKU:
74023-4
Voltage:
440-volt 3-phase

Dake

Dake Horizontal Mitering Bandsaw, TRAD301, 440V 3-phase - 74023-4


Unique design makes this bandsaw a real problem solver and an exceptional value.These Johnson mitering horizontal bandsaws will miter up to 60º to the right, and anywhere in between. They also feature head down feed, multimode cutting, quick set cam-activated vises, direct drive, and a heavy cast head frame.


Features:

  • Head down feed is gravity fed and controlled by way of an infinitely variable flow control valve (except Zip 22). The flow control allows for presetting the down feed rate and retaining this setting at the end of the cut, to minimize dead air cutting.
  • Heavy cast head frame for rigidity and roller and carbide guides for optimum cutting quality. Easily set the most appropriate blade and head descend speed according to the stock material, size and shape for maximum efficiency.
  • Drive system. Direct drive means full power to the drive wheel without horse power loss through belts and pulleys. Low maintenance without belts and pulleys.
  • Multimode features allow three different cutting modes (except Zip 22): 1. Manual mode 2. Manual mode with hydraulic down feed regulation 3. Automatic down feed
  • Quick set cam-activated vises. Adjustable vise with handwheel for initial set up and quick release cam lever for repeat cutting. Vise on the Trad 300 model is gib adjustable.
  • Miter up to 60º to the right, and anywhere in between. The head, NOT the material, rotates for angle cutting. (Trad 301 will miter up to 45º left.)


Standard Equipment:

  • Fabricated oversize steel base
  • Vises — Quick set cam action type
  • Combination guides — Roller and carbide
  • CE certified electrical — Low voltage controls, thermo overload, low voltage coil
  • Mechanical blade tensioning — Blade breakage shut off (except Zip 22)
  • Stock stop
  • Multimode feature (except Zip 22)
  • Coolant Pump — Electric with flow control
  • Head feed — Hydraulic regulated head down feed rate (except Zip 22)
  • Direct drive gear box
  • Door interlocks and end-of-cut shut off
  • Adjustable manual head return
  • Material support roller


Specifications:

Model TRAD301
Order Number 74023-4
voltage 440-volt 3-phase
maximum blade size 108-1/4" x 1"
motor horsepower 1.3/2
blade speeds 108/216
weight (lbs) 970 lbs.
solid round 90˚ capacity 10"
solid round 45˚ right capacity 7-1/2"
solid round 60˚ right capacity 4-1/4"
solid square 90˚ capacity 9-3/4"
solid square 45˚ right capacity 7"
solid square 60˚ right capacity 4-1/3"
solid rectangle 90˚ capacity 11-3/4" x 7"
solid rectangle 45˚ right capacity 7-1/2" x 6-5/8"
solid rectangle 60˚ right capacity 4-1/4" x 5-7/8"
A work table height 37"
B height 77"
C floor space left to right 47"
D floor space front to back 79"
