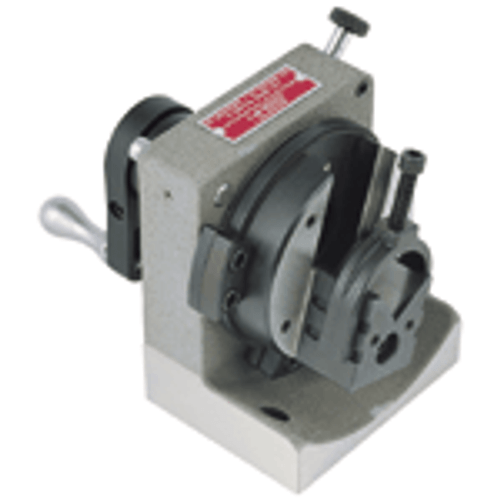

Universal Grinding Fixture - 70-130-0

Brand:

(No reviews yet) Write a Review
SKU:
70-130-0
Base Length:
3-1/16"
Base Width:
4-1/8"
Center Height:
3.00"
Height:
5"
Through Hole 0:
1-1/4"
V-Block Capacity:
1-1/4"

Harig

 HARIG GRIND-ALL NO. 1 FIXTURE 010-100

  • Made in U.S.A.
  • Ideal for grinding various shaped punches and for convenient use in inspection, light milling, jig-bor-ing, jig-grinding, radius dressing and machining electrodes.
  • One-piece, hardened steel body.
  • Ball and race integral preloaded bearing for high concentricity and minimum deflection.
  • Dial graduated 360° in 1° increments.
  • 24 division index plate for quick indexing every 15° to ± 15 seconds non-cumulative.
  • Extra precise angular settings with the sine system, using adjustable stop and pin provided.
  • V-Block adjusting screw for easy positioning to ±.0001".
  • Single screw locks V-Block in place without deflection.
Universal Grinding Fixture
