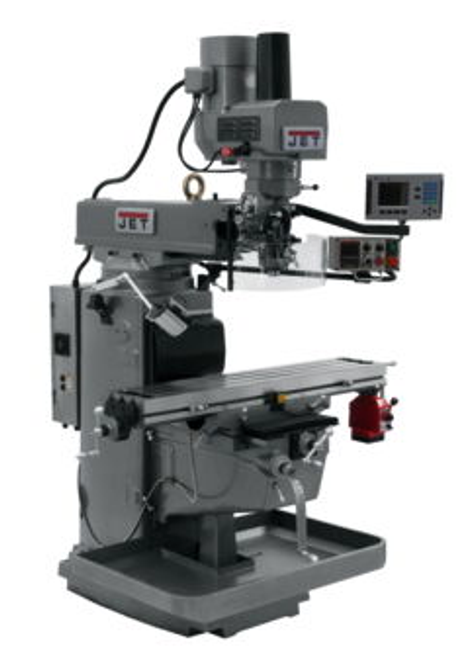

JET JTM-1050EVS2/230 Mill With 3-Axis Acu-Rite 200S DRO (Knee) With X-Axis Powerfeed - 690624

Brand:

(No reviews yet) Write a Review
SKU:
690624


Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty

FEATURES:

  • JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • CSA/CUS Certified
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
  • The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
  • Swing away safety shield
  • LED work lamp
  • Chip pan
  • Dual locks on all moveable surfaces
  • Way covers
  • Drawbar
  • Tool box with tools

SPECIFICATIONS:

Digital Readout  ACU-RITE 200S
Powerfeed X-Axis
Spindle Taper (In. x TPI) R-8
Table Size (L x W) (In.) 10 x 50
Quill Diameter (In.) 3-3/8
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 60 - 4,500
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Spindle Travel (In.) 5
Head Movement (Deg.) 90°R & L 45° F & B
Max Distance Spindle to Table (In.) 20-3/4
Distance Spindle to Column (Max.) (In.) 26-3/4
Distance Spindle to Column (Min.) (In.) 4-3/4
Collet Capacity 1/8 - 7/8
Table Longitudinal Travel (In.) 35-1/3
Table Longitudinal Travel With Powerfeed (In.) 29-7/8
Table Cross Travel (In.) 14-3/4
T-Slots Number and Size (In.) 3 and 5/8
T-Slot Centers (In.) 2-1/2
Work Table Weight Capacity (Lbs.) 840
Travel of Knee (In.) 16-1/8
Travel of Ram (In.) 15-7/8
Saddle Width (In.) 11-1/2
Column Width (In.) 20
Inverter Type Delta, B
Motor (HP) 3 HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.) 66 x 63 x 87
Weight (Lbs.) 2,860
