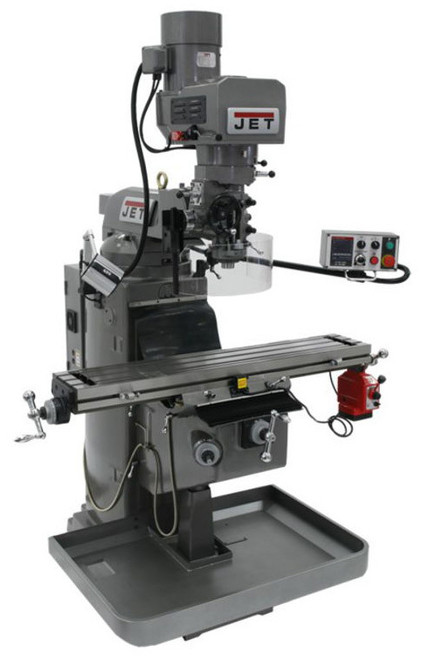

JET JTM-949EVS Milling Machine w/ X-Axis Powerfeed & 3-Axis Acu-Rite VUE DRO - 690515

Brand:

(No reviews yet) Write a Review
SKU:
690515
Digital<br>Readout:
ACU-RITE VUE
Number<br>of Axis:
3 (Quill)
Powerfeed:
X-Axis
Power<br>Draw Bar:
--

JET

JET JTM-949EVS Milling Machine w/ X-Axis Powerfeed & 3-Axis Acu-Rite VUE DRO - 690515


Durability:

  • Certified Meehanite® Castings
  • Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications
  • Precision bored and honed milling head
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Quick spindle feed nut easily adjusts to different depths
  • One-piece quill pinion and shaft
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Precision hardened and ground ways and table
  • Turcite-B on X and Y-Axis
  • Adjustable gibs throughout


Safety:

  • For added safety, the JTM-1050EVS2 follows strict guidelines and electrical requirements to be certified by CSA Group
  • Swing away spindle guard
  • L.E.D. work lamp
  • Internal coolant tank built into casting base


Ease of Use:

  • Automatic Lubrication every 30 minutes with a flow of 3-6cc reduces maintenance
  • Inverter Drive System and emergency stop located on a swing away control arm moves all major funtions within the operators reach
  • JET exclusive new casting provides an easier solution to leveling the machine without raising it off the floor
  • Two 115V outlets on electrical box for DRO or Powerfeeds


Standard Equipment:

  • Spindle Safety Guard
  • Halogen Machine Lamp
  • Dual locks on all moveable surfaces
  • Chip pan
  • Way covers
  • Draw bar
  • Tool box with tools


Specifications:

Item Number 690515
Model JTM-949EVS
Powerfeed X-Axis
Digital Readout Acu-Rite VUE DRO
Number of Axis 3 (Quill)
Table Size (L x W) 9" x 49"
Spindle Taper R-8
Quill Diameter 3-3/8"
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 60 - 4,500
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Quill Travel 5"
Head Movement (Deg.) 90° R & L, 45° F & B
Max Distance Spindle to Table 20-3/4"
Distance Spindle to Column (Max.) 18-1/8"
Distance Spindle to Column (Min.) 4-3/4"
Collet Capacity 1/8" - 7/8"
Table Longitudinal Travel 30-3/4" - 36"
Table Cross Travel 12-5/8"
T-Slots Number and Size 3" and 5/8"
T-Slot Centers 2-1/2"
Work Table Weight Capacity (Lbs.) 720
Travel of Knee 15-3/4"
Travel of Ram 15-1/4"
Saddle Width (In.) 11-1/2"
Column Width (In.) 18"
Inverter Type Delta, B
Motor (HP) 3 HP, 230V, 3-Phase
Overall Dimensions (L x W x H) 66" x 63" x 86"
Weight (Lbs.) 2420
