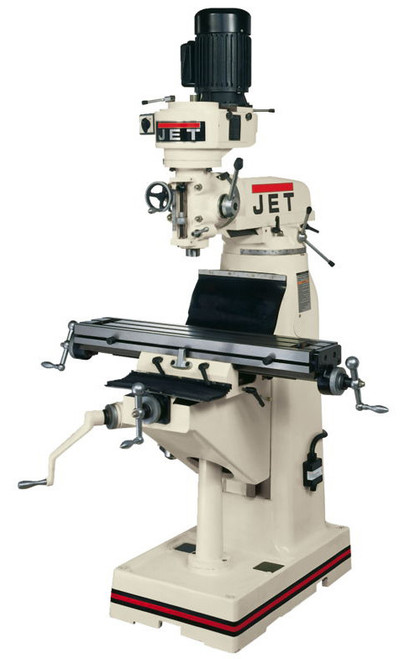

JET Step Pulley Milling Machine JVM-836, 3-Phase w/ X-Axis Powerfeed - 690174


The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty.


Features:

  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision spindle bearings
  • Over 10” of front to back ram travel
  • Locks on all movable surfaces
  • Hardened and ground precision table
  • Head tilts left or right
  • Graduated scale on column
  • Precision ground dovetail ways
  • One shot lubrication system
  • Way covers
  • Draw bar
  • Tool box and tools


Specifications:

Model 690174
Spindle Taper (In. x TPI) R-8
Table Size (L x W) 7-7/8" x 35-3/4"
Quill Diameter 3-3/8"
Number of Spindle Speeds 10
Range of Spindle Speeds 120 - 1,550 RPM
Spindle Travel 5"
Head Movement (Deg.) 90 R & L
Max Distance Spindle to Table 13-3/4"
Distance Spindle to Column (Max.) 15-3/4"
Distance Spindle to Column (Min.) 5-1/4"
Collet Capacity 1/8 - 7/8
Table Longitudinal Travel 22-1/4"
Table Cross Travel 9-1/2"
T-Slots Number and Size 3" - 5/8"
T-Slot Centers 2-1/2"
Work Table Weight Capacity 500 lbs.
Travel of Knee 14"
Travel of Ram 10-1/2"
Motor (HP) 1.5 HP, 230V Only, 3-Phase
Prewired (V.) 230V
Overall Dimensions (L x W x H) 55" x 52" x 78"
Weight 1610 lbs.
