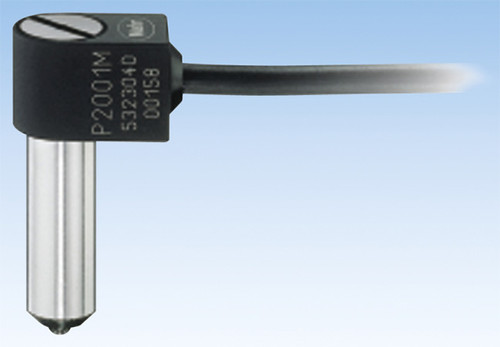

Mahr/Federal Millimar Inductive Measuring Probe P2001 - 5323043

Brand:

(No reviews yet) Write a Review
SKU:
5323043
Series:
P2001
Compatibility:
Marposs (Blue)
Range:
-0.5mm to 0.5mm
Lifter:
-

Mahr

Mahr/Federal Millimar Inductive Measuring Probe P2001 - 5323043


Millimar P2001 Inductive Probes

  • Compact Design
  • Sliding Guide
  • High linearity over the total measuring range
  • Excellent electromagnetic shielding (EMC)


P2001 Specifications:

Item Number 5323040 5323041 5323043 5323044
Compatibility Mahr-VLDT Tesa Marposs Federal
Measuring range from -0.5 mm
Measuring range up to 0.5 mm
Measuring force 0,75 N +/- 0,15 N
Increase in measuring force 0,1 N/mm
Sensitivity deviation 0.3 %
Repeatability fw (µm) 0.15 µm
Hysteresis fu (µm) 0.2 µm
Linearity deviation within +/- 0,1 mm 0.6 µm
Linearity deviation within +/- 0,5 mm 1.5 µm
IP protection category IP 40
Cable length 2.5 m
Working temperature 20 °C
Working temperature MIN 10 °C
Working temperature MAX 55 °C
Operating temperature Min -10 °C
Operating temperature Max 80 °C
Temperature coefficient 0.15 µm/°C
