Scotchman 50 Ton Hydraulic Ironworker, 220V, 1-phase - 50514CM-1

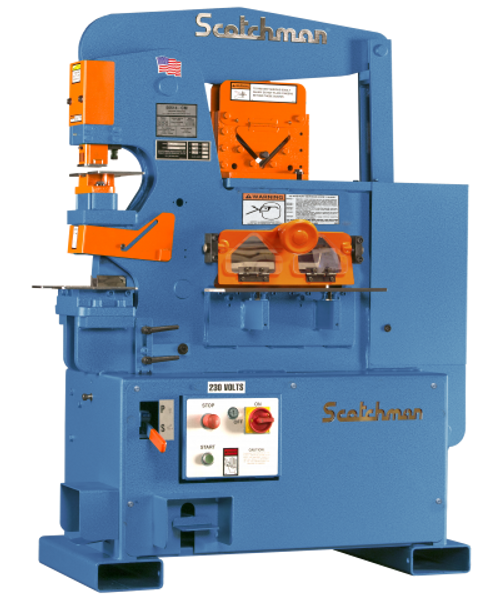

The versatile 50514 CM hydraulic ironworker from Scotchman Industries is now better than ever with the addition of a 5th work station. The 50514 CM is an all-around workhorse and comes standard with a 50-ton punch capable of producing a 13/16" hole in 3/4" material, a 4" x 4" x 3/8" angle shear, a 14" flat bar shear, a built-in rectangle notcher, and a fifth station capable of housing an optional pipe notcher.

In addition to the standard tooling features, the 50514 CM is also compatible with a range of optional tools from Scotchman for added versatility and function around the shop. Like all Scotchman ironworkers, 50514 CM is proudly made in the USA and backed by Scotchman’s Best in the Business 3-year warranty.


Standard Features:

  • 50 Ton Punch Station (1-1/4" in 1/2" and 13/16" in 3/4")
  • Keyed Punch Ram for Safety
  • 6" Throat Depth
  • 2" Die Holder
  • Punch Nut with Wrench & Stripper
  • One Round Punch & Die: Max. Dia. 1"
  • Adjustable Stroke Control
  • Angle Shear Capacity 4" x 4" x 3/8" at 90° and 2" x 2" x 3/8" at 45°
  • 14" Flat Bar Shear with 4-Way Reversible Blade (3/4" x 4", 1/2" x 8", 3/8" x 10" 1/4" x 14")
  • Rectangle Notcher - 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" x 3/8"
  • Tool Table Work Area
  • Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
  • 230/460 volt / 3 Phase Electrics (must specify voltage)
  • All Guards Necessary to Comply with ANSI B 11-5 Standards
  • Forklift Accommodations
  • Warranty: Three Years on Parts
  • Made in USA


Capacities / Specifications:

Rated on: 65,000 PSI Tensile A 36 Mild Steel
Punching Capacity 50 ton
1-1/4" in 1/2"
13/16" in 3/4"
45 mt
32 mm in 12 mm
21 mm in 18 mm
Special Tooling 2-1/4" Max. Dia. 57 mm Max. Dia.
Throat Depth 6" 150 mm
Flat Bar Shear 14" Length
3/4" x 4"
1/2" x 8"
3/8" x 10"
1/4" x 14"
350 mm
18 mm x 100 mm
12 mm x 200 mm
10 mm x 250 mm
6 mm x 350 mm
Opt. Saber Blade 1/2" x 10"
3/8" x 12"
12 mm x 250 mm
10 mm x 300 mm
Angle Shear 90° 4" x 4" x 3/8" 100 mm x 100 mm x 10 mm
Angle Shear 45° 2" x 2" x 3/8" 50 mm x 50 mm x 10 mm
Brake 8" 30 ton 27 mt
Brake 12" 25 ton 23 mt
Open End Brake Max. 1/4" x 3"
Flat or Angle Iron
(6 x 76 mm)
Pipe Notcher
Schedule 40 I.D.
3/4", 1"
1-1/4"
1-1/2", 2"
19 mm, 25 mm
32 mm
38 mm, 50 mm
Rectangle Notcher 2-1/2" x 3" x 5/16"
2-1/2" x 2-3/4" X 3/8"
62 x 75 x 8 mm
62 x 69 x 10 mm
90° V. Notcher 6" x 6" x 1/8"
3" x 3" X 1/4"
150 mm x 150 mm x 3 mm
75 mm x 75 m x 6 mm
Strut Shear Samples Required
Rod Shear

Round Rod (Max.)




Square Rod (Max.)


1/4" to 1"
5 Cavity
7/16", 9/16"
5/8", 3/4", 1"

1/4" to 3/4"
1 Cavity
3/4"


6 mm to 25 mm

11 mm, 14 mm
16 mm, 19 mm, 25 mm

6 mm to 19 mm

19 mm
Square Tube Shear 1/2" to 1"
12 ga.
12 mm to 25 mm
2.75 mm max.
Picket Tool 1/2"
3/4"
1"
16 Gauge
12 mm
19 mm
25 mm
1.6 mm
Strokes Per Minute in Light Material 1/4" stroke [Punch Station] 40 spm
Strokes Per Minute in Heavy Material 3/4" stroke [Punch Station] 17 spm
Hydraulics 2100 psi 145 bar
Motors Standard 3 hp 3 ph
230/460
208/380/575
2.24 kW
Motors Optional 5 hp 1 ph
220v
3.73 kW
Dimensions W-29"
L-47"
H-59"
W-74 cm
L-119 cm
H-150 cm
Shipping Weight 1,389 lbs. 630 kg
