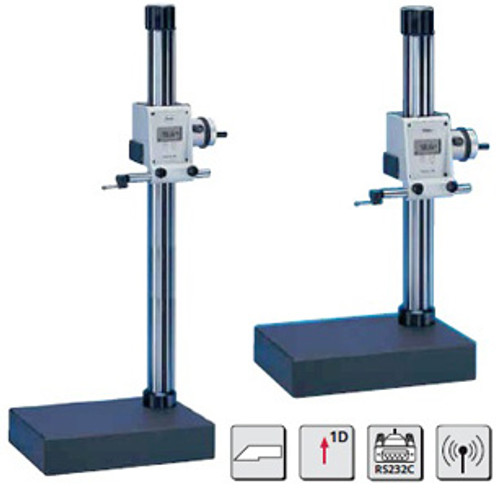

Mahr Height Measuring and Scribing Instrument Digimar 814 SR - 4426100

Brand:

(No reviews yet) Write a Review
SKU:
4426100

Mahr

Mahr Height Measuring and Scribing Instrument Digimar 814 SR

Functions:

  • RESET (Set the display to zero for relative measurement)
  • ABS (Switch between relative and absolute measurement)
  • mm/inch
  • Reference-Lock/Unlock
  • PRESET (To enter a numerical value)
  • DATA (Data transmission via connection cable)
  • Auto-ON/OFF
  • Life of the battery up to 3 years
  • Resolution: 0.01mm / .0005"
  • Max. measuring speed 1.5 m/s (60”/s)
  • MarConnect Data output: choose either USB OPTO RS232C Digimatic
  • High contrast Liquid Crystal Display with 12 mm high digits
  • Sturdy heavy-duty base, easy to handle
  • Hardened and lapped contact surface which produce both a smooth and even movement
  • Slide and beam made of hardened stainless steel
  • Hand crank for positioning and measuring
  • Fine adjustment
  • Locking screw
  • Interchangeable scriber point, carbide tipped
  • Scope of supply: Scriber point, cardboard box, battery and operating instructions

Applications:
• Scribing and marking of work pieces
• Measuring heights and distances

Mahr Height Gage Measuring Range: 350mm / 14" 0.0005"/0.01mm
