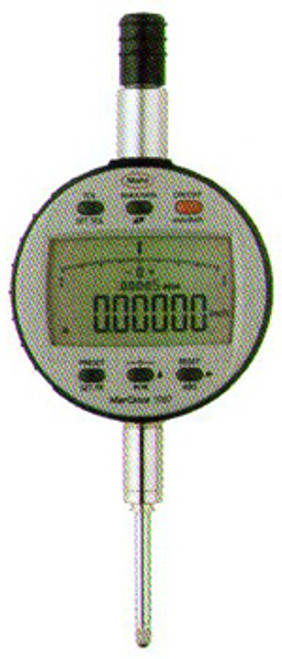

MAHR Digital Indicator MarCator 1087 Ri with Analog Display, 1"/25mm - 4337165

Brand:

(No reviews yet) Write a Review
SKU:
4337165
Range:
1" / 25mm

Mahr

MAHR Digital Indicator MarCator 1087 Ri with Analog Display, 1"/25mm - 4337165


Just set once to zero: The new Digital Indicators 1087 Ri are equipped with the innovative Reference system. The zero position only has to be set one time: once it is set, the zero remains stored for all further measurements. Therefore, when the indicator is switched ON or the measuring spindle is moved, the indicator is immediately ready for measurement; thus the need to reset as with a conventional indicator is now obsolete.

Battery service life is 3 years: The new Reference system is extremely energy efficient when the caliper is in standby mode, almost no power is required, thus extending the life of the battery up to 3 years*. * When Integrated Wireless is deactivated

Lock function: This prevents unintentional activation of an operating button. Either all the operating buttons or only certain individual buttons can be locked. If a locked operating button is pressed the “LOC” symbol appears in the display.


Functions:

  • ON/OFF
  • RESET (Set display to zero)
  • mm/inch
  • Reverse the counting direction
  • PRESET (Allows the entry of any value using set buttons)
  • TOL (Enter tolerance limit values)
  • Tolerance band max. 1.6 mm
  • MAX/MIN memory, ideal for searching the reversal point
  • TIR (MAX-MIN) ideal for testing concentricity and flatness
  • ABS (Display can be set to zero, without losing the reference to the Preset value)
  • 0 (Set analog display to zero)
  • DATA (when connected with a data connection cable)
  • Factor (adjustable)
  • Immediate measurement due to the Reference system
  • Individual buttons can belocked - Lock Function
  • Operating and display unit (bezel) can be rotated 280°
  • High contrast LCD with 8.5 mm high digits • Operating time approx.
  • 3 years (2000 work. hrs/year)
  • Maximum measuring speed 1.5 m/s (60”/s)
  • MarConnect data output, choose either:
    - USB
    - OPTO RS232C
    - Digimatic
    - Integrated Wireless
  • Operating temperature 10 - 40°C
  • Class of protection IP42 in accordance to IEC 60529
  • Supplied with: Battery, Operating instructions


Specifications:



See all Accessories for the MAHR Digital Indicators MarCator 1087 Ri with Analog Display

MAHR Digital Indicator MarCator 1087 Ri with Analog Display
