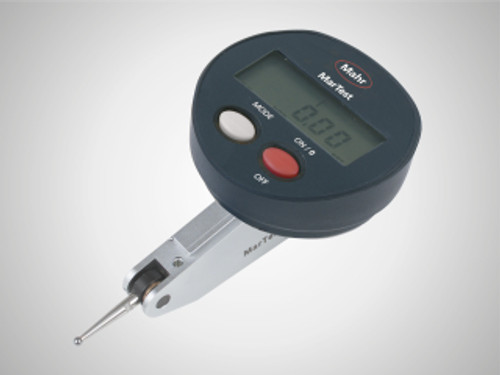

Mahr Digital Test Indicator 800 EW - 4305120

Brand:

(No reviews yet) Write a Review
SKU:
4305120
Range:
±0.015" / ±0.4mm
Length of Stylus:
1/2"

Mahr

Mahr Digital Test Indicator 800 EW  4305120

  • ON/OFF RESET (Set display to zero) mm/inch MAX/MIN memory MAX-MIN ideal for testing concentricity an flatness Auto-OFF
  • Inductive measuring system, battery lifespan ca. 2 years
  • MarConnect data output, hoose alternatively: USB OPTO RS232C
  • Operating unit is protected against coolants and lubricants, protection class IP65
  • Combined analog and digital display
  • Operating and display unit (bezel) can be rotated through 360°
  • Satin chrome finished housing with 3 dovetail guideways
  • Shockproof, movement bearings are jewelled
  • Automatic matching to sensing direction
  • Anti-magnetic
  • Double lever supported in ball bearings, overload protection provided by slip clutch
  • Supplied with: Plastic case, spanner to change the styluses, contact point ø2mm, mounting shaft
  • Switchable Resolution: 0.00005" / 0.001mm or 0.0005" / 0.01mm
Digital Test Indicator 800 EW
