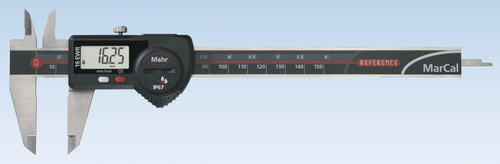

Mahr Federal Digital Electronic Caliper MARCAL 16 EWR, 12"/300mm - 4103070

Brand:

(No reviews yet) Write a Review
SKU:
4103070
Range mm:
0 - 300 mm
Range inch:
0 - 12"
Friction Wheel:
No
Depth Rod:
-

Mahr

Mahr Federal Digital Electronic Caliper MARCAL 16 EWR, 12"/300mm - 4103070

MARCAL 16 EWR DIGITAL CALIPER


Product Features:

  • High contrast analog display
  • Locking screw above
  • Lapped guide way
  • Measuring blade for inside measurements
  • Slide and beam made of hardened stainless steel
  • Step measuring function
  • Immediate measurements due to the Reference system
  • Raised guide ways for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide


Data Interface:

  • USB
  • Opto RS232C
  • Digimatic


IP protection category: IP 67


Scope of Delivery:

  • Battery
  • Instruction manual
  • Case


Energy Supply: Battery, life span ca. 3 years

Height of Digits: 8.5 mm


Functions:

  • ON/OFF
  • AUTO-ON / OFF
  • RESET (set display to zero)
  • mm/inch
  • LOCK function (key lock)
  • DATA (Data transmission via connection cable)


Technical Data:

Order no. Range
(mm)
Range
inches
Resolution
mm/inch
Error limit
(mm)
Error limit
inches
Standard Friction
wheel
Depth Rod
4103070 0 - 300 0 - 12" 0.01 / .0005" 0.04 mm .0015" Factory
standard
no
