Mitutoyo Three/Two-Point Internal Holtest Micrometer SET, Series 368, 2" - 4" - 368-919

Brand:

(No reviews yet) Write a Review
SKU:
368-919
Range:
2" - 4"
Head Assy<br>Order No.:
-
Accuracy:
-
Remarks:
Titanium Coated Contact Points, Ext Rod

Mitutoyo

Mitutoyo Three/Two-Point Internal Holtest Micrometer SET, Series 368, 2" - 4" - 368-919


Individual Ranges: 2.0 - 2.5" // 2.5 - 3.0" // 3.0 - 3.5" // 3.5 - 4.0"
Setting Rings Included: 2.5" DIA., 3.5" DIA.

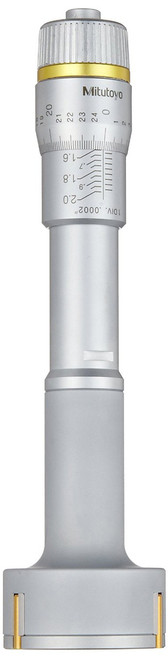

These Holtests are versatile, self-centering three-point internal micrometers for the accurate and efficient direct-measurement of internal diameters. Three anvils, evenly spaced at 120° apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement.


Features:

  • TiN-coated measuring contact points(over 6mm/.275" range models) provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.
  • Highly durable because of carbide-tipped contact points (anvils)
  • Measurement can be taken closer to the bottom of the blind bore
  • Can measure deep holes using an Extension rod (optional) which is available on models over 6mm (.275") measuring range
  • With Ratchet Stop for constant force
  • Setting Rings for zero point adjustment
  • Supplied in fitted plastic case up to 100mm / 4”. Over 100mm / 4” supplied in wooden case


Technical Data:

  • Graduation: 0.001mm, 0.005mm*,
    .0001" or .0002"* (*over 12mm or .5” models)


Optional Accessories:

  • # 952322: Extension rod 100mm / 3.94" For range 6-12mm / .275" - .5" models
  • # 952621: Extension rod 150mm / 5.9" For range 12-20mm / .5" - .8" models
  • # 952622: Extension rod 150mm / 5.9" For range 20-50mm / .8" - 2" models
  • # 952623: Extension rod 150mm / 5.9" For range 50-300mm / 2" - 12" models


See all Mitutoyo Three/Two-Point Internal Holtest Micrometers, Series 368
