JET Geared Head Mill/Drill JMD-45GH with Newall DP500 2-Axis DRO - 351158

Brand:

(No reviews yet) Write a Review
SKU:
351158
Powerfeed:
-
Digital Readout:
Newall DP500 2-Axis
Drilling Cap.:
1-1/2"
Spindle Speeds:
6 Speeds (65-1550 RPM)

JET

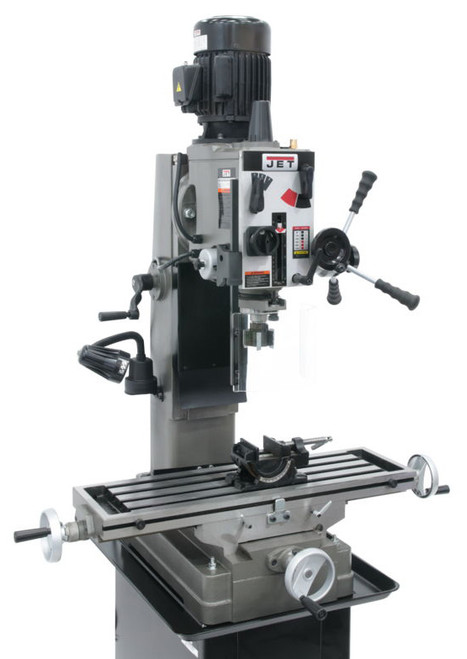

JET Geared Head Mill/Drill JMD-45GH with Newall DP500 2-Axis DRO - 351158

Geared Head Square Column Mill/Drill


The heavy-duty JMD-45GH Square Column Geared Head Mill Drill is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments.


Features:

  • Heavy-duty design allows for a variety of precision drilling applications
  • Full power to the cutting tools through 6 speed geared head
  • Square column with dovetail ways
  • CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
  • Spindle guard
  • Work Lamp
  • Calibrated fine down feed built in
  • Easy to read internal depth gauge
  • Head tilts left & right 90º
  • Rapid spindle speed changes through quick-select gear shift levers
  • Forward/reverse switch
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling


Specifications:

Item Number 351158
Model JMD-45GH
DIGITAL READOUT NEWALL DP500 2-AXIS DRO
DRILLING CAPACITY 1-1/2"
FACE MILL CAPACITY 4"
END MILL CAPACITY 3/4"
MAX DISTANCE SPINDLE TO TABLE 18-1/8"
SPINDLE TAPER (IN. X TPI) R8
SPINDLE TRAVEL AUTO 5"
COLUMN DIAMETER 7-7/8" x 7-5/8" SQUARE
NUMBER OF SPINDLE SPEEDS 6
RANGE OF SPINDLE SPEEDS (RPM) 65-1550
TABLE SIZE (L X W) 9-1/2" x 32-1/4"
T-SLOTS NUMBER AND SIZE 4 & 5/8"
BASE DIMENSIONS 26-11/16" x 15-15/16"
MOTOR (HP) 1-1/2HP, 115/230V, 1PH
OVERALL DIMENSIONS (L X W X H) 29 X 36 X 50
WEIGHT 794 lbs.
