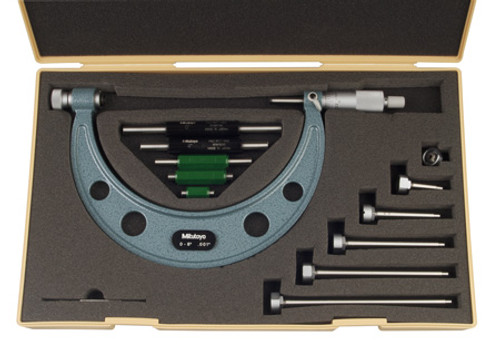

Mitutoyo Oustside Micrometers Series 340 with Interchangeable Anvils - 340-722

Brand:

(No reviews yet) Write a Review
SKU:
340-722
Mitutoyo Oustside Micrometers Series 340 with Interchangeable Anvils

FEATURES:
  • IP65 water/dust protection 340 series models with a range up to 12in/300mm.
  • Wide measuring range with interchangeable anvils.
  • With a Ratchet Stop for constant force.
  • Supplied with zero-setting standards bar for each range.
  • With SPC output (Series 340).
  • Supplied in fitted wooden case.
Technical Data
  • Accuracy: ±(4+R/75)ìm, R=max. range (mm) [.00016” ±.00004 (L/3)”] L = Max Range (Inch)
  • Resolution*: 0.001mm or .0001"/0.001mm (340-351-10: .00005"/0.001mm)
  • Graduation**: 0.01mm
  • Flatness: 0.6µm/.000024” for models up to 300mm/12” 1µm/.00004” for models over 300mm/12”
  • Parallelism: 2µm/.00008” for models up to 75mm/3” 3µm/.00012” for models up to 150mm/6” (2+R/100)µm for models over 150mm, R=max. range (mm) [.00008” ± .00004 (L/4)”] L= Max range (inch)
  • Measuring faces: Carbide tipped
  • Display*: LCD
  • Battery*: SR44 (1 pc.), 938882
  • Battery life*: Approx. 1.2 years under normal use
  • Dust/Water protection level*: IP65
  • *Digital models **Analog models
Function of Digital Model
  • Zero-setting, Data hold, Preset, Data output, inch/mm conversion (inch/mm models)
  • Alarm: Low voltage, Counting value composition error
  • ***Function Lock
  • ***2 Presets
  • ***100-300mm/4-12”
Range: 24-30in 609.6-762mm
