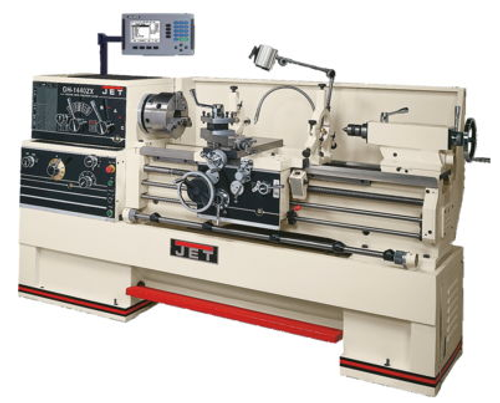

JET GH-26120ZH With ACU-RITE 300S DRO - 321896

Brand:

(No reviews yet) Write a Review
SKU:
321896


The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

FEATURES:

  • 4-1/8" Spindle Bore
  • Clutch operated headstock with all headstock gears hardened and ground
  • Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
  • Meehanite Castings are used for added durability.
  • Bed ways are induction hardened and ground for durability.
  • Full Length Splash Guard
  • Heavy-duty tailstock and quill
  • Rapid power traverse to cross slide and carriage
  • Siemens Electrics
  • Standard Equipment:
  • Drive Plate
  • 12" 3-Jaw scroll chuck with top reversing jaws
  • Face Plate
  • 2 Steady Rests with Roller Bearings
  • Follow Rest
  • Large capacity steady rest with ball bearing tips
  • 5pc. Quick change tool post set
  • Micro-carriage bed stop
  • Fully Integrated Coolant System
  • LED work lamp
  • Electronic Chuck Key Holder
  • Fitted top mats to hold tooling
  • E-Stop on Carriage for added safety
  • Large easy to use foot brake

SPECIFICATIONS:

Size  26 x 120
Digital Readout ACU-RITE 300S
Swing Over Bed (In.) 26
Swing Over Cross Slide (In.) 16-1/2
Swing Through Gap (In.) 34
Length of Gap (In.) 8
Distance Between Centers (In.) 120
Spindle Bore (In.) 4-1/8
Spindle Mount D1-8
Spindle Taper with Sleeve MT-5
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 36 - 1,600
Number of Longitudinal and Cross Feed Rates 65
Range of Longitudinal Feeds (IPR) .0023 - .0937
Range of Cross Feeds (IPR) .0040 - .0404
Number of Inch Threads 48
Range of Inch Threads (TPI) 2-30
Number of Metric Threads 22
Range of Metric Threads 1 - 14
Max Tool Size (In.) 1-1/4 x 1-1/4
Compound Slide Travel (In.) 5-1/2
Cross Slide Travel (In.) 12-3/32
Carriage Travel (In.) 108-1/4
Tailstock Spindle Travel (In.) 6
Taper in Tailstock Spindle MT-5
Follow Rest Capacity (In.) 25/32 - 3-15/16
Steady Rest Capacity (In.) Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Width of Bed (In.) 16
Motor (HP) 10 HP, 230/460, 3 Ph
Prewired (V.) 230
Weight (Lbs.) 9,362
Overall Dimensions (L x W x H) (In.) 178 x 43 x 57
