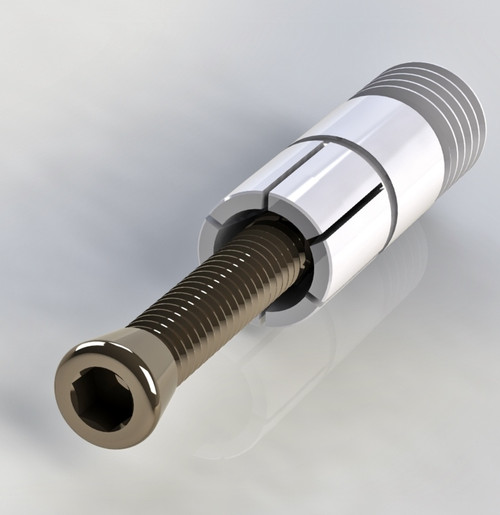

Mitee-Bite Threaded Pin - 31850

Threaded XYZ Pins incorporate an internal rotary broached hex for simple installation and removal from a tombstone, grid plate or fixture plate. Threaded Pins may be installed in a drilled and reamed hole for precise location or set in a hardened drill bushing for fixture strength and wear resistance. To install a Threaded XYZ Pin in a precision bore, drill and ream the hole over the nominal diameter minimum of +0.0001 to +0.0005″. (+.003 to +0.013mm).

*G – Minimum diameter pin can be machined or turned down to
** Torque of pin body needs to exceed torque of tapered screw
