Dyer Long Reach Gage, Outside Measurement - 302-204

Brand:

(No reviews yet) Write a Review
SKU:
302-204

Dyer Long Reach Gage, Outside Measurement

SKU: 302-204

  • Ease of use, operator friendly.
  • Direct reading.
  • Fast, accurate, 24-7 shop-rugged.
  • Gage reaches over flanges for hard-to-reach measurements.
  • Maximum Measuring Accuracy
    Linear ± 0.002"/ ± 0.1mm
    Repeatability ± 0.001"/ ± 0.050mm
302-103-specialflatcontacts.jpg Special Flat Contacts:
Dyer offers 0.39"/10mm and 1.97"/50mm flat contacts as standard. we will custom make flat contacts to your requirements. Contact Dyer Applications Engineering

ø 50.0mm (2.0") dia. Flat upper and lower top swivels, bottom fixed

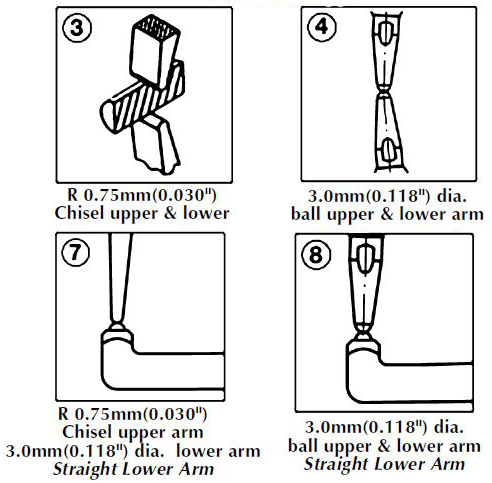

Contact Point Type:

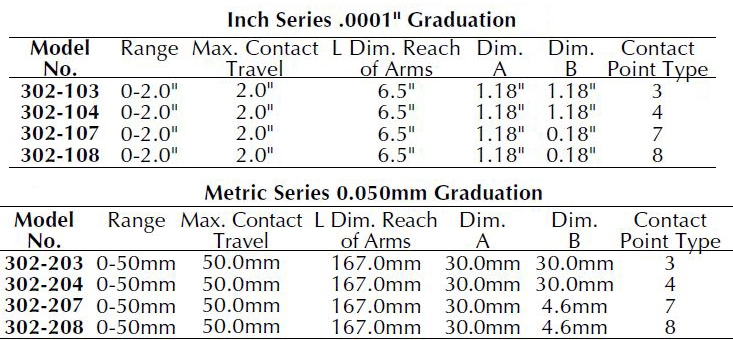

Specifications:


Range: 0 - 50mm | Contact Point Type: 4
