VALCUT Series 3000 Cutting System with Removable High Speed Steel Regrindable E Blades

Brand:

26-036-034
(No reviews yet) Write a Review
26-036-034

VALCUT

VALCUT Series 3000 Cutting System with Removable High Speed Steel Regrindable E Blades


Circle Cutting Trepanning Tools

  • All tools accept 5A type blades


Cutting Range

  • From 35mm to 180mm in steels with a thickness up to & including 50mm.
  • From 35mm to 300mm with optional transversal bar model #3200-5.


Type

  • Cutting System With Removable High Speed Steel Regrindable E Blades


Application

  • O-Ring Slotting, Trepanning & Trepanning With Chamfering


Specifications:

Item Number 26-036-034 26-036-036 26-036-037
BRAND VALCUT VALCUT VALCUT
MODEL # 3000-16 SET 3000-MK3 SET 3000-MK4 SET
COMPOSITION
  • 5/8" chuck body
  • Transversal bar model #3070-5 with a capacity up to 100mm diameter

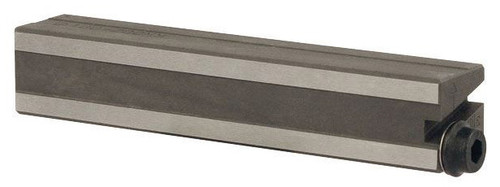

  • Transversal bar model #3120-5 with a capacity up to 180mm diameter
  • (6) Model #5A10 blades for steel & aluminum
  • (2) Pilot drills
  • (1) Adjustment gauge
  • (1) Hex key
  • 3MT chuck body
  • Transversal bar model #3070-5 with a capacity up to 100mm diameter
  • Transversal bar model #3120-5 with a capacity up to 180mm diameter
  • (6) Model #5A10 blades for steel & aluminum
  • (2) Pilot drills
  • (1) Adjustment gauge
  • (1) Hex key
  • 4MT chuck body
  • Transversal bar model #3070-5 with a capacity up to 100mm diameter
  • Transversal bar model #3120-5 with a capacity up to 180mm diameter
  • (6) Model #5A10 blades for steel & aluminum
  • (2) Pilot drills
  • (1) Adjustment gauge
  • (1) Hex key
CUTTING DIAMETER CAPACITY 35mm-180mm 35mm-180mm 35mm-180mm
DEPTH OF CUT 50mm 50mm 50mm
GUIDANCE DRILL Yes Yes Yes
MAXIMUM THICKNESS OF THE SHEET 50mm 50mm 50mm
SHANK SIZE 5/8" Shank 3MT Shank 4MT Shank
TOOL MATERIAL Steel Steel Steel
WEIGHT 4.343 lbs. 7.03 lbs. 9.973 lbs.
COUNTRY OF ORIGIN SWITZERLAND SWITZERLAND SWITZERLAND
