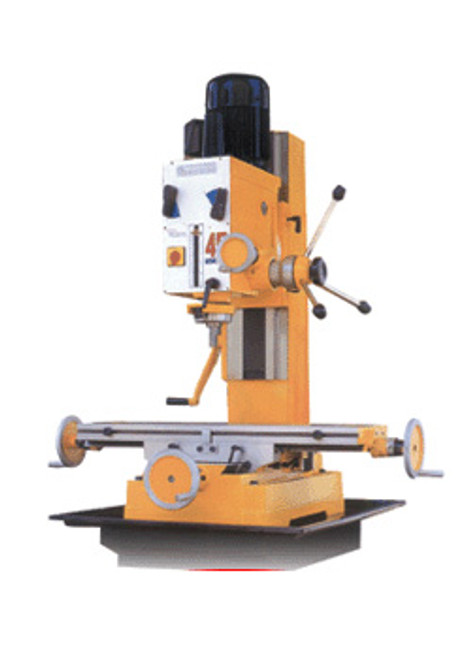

Top Tech Milling and Drilling Machine Geared Head R-8 Spindle
R-8 Spindle Power Downfeed Drilling/Milling Machine
Milling drilling, tapping, boring, and reaming. Head swivels 360º. Fine Feed Handwheel. Forward and reversing switch. Positive spindle locks. Heavy-duty tapered roller bearing spindle. Adjustable gibs on milling table. Gear drive, lower noise. Halogen lamp. Built in coolant system.
| Model No. | DMF-40 | |
| Drilling capacity: | 2" | |
| Milling capacity: | 5" Face Mill | |
| Spindle Taper: | R-8 | |
| Spindle Travel: | 5" | |
| No. of spindle speeds: | 6 | |
| Spindle speed, RPM: | 90-1900 | |
| Max distance, spindle to worktable | 24-1/2" | |
| Max distance spindle to base | 47-1/2 | |
| Milling table size: | 24" x 7-1/2" | |
| Travel "X" & "Y" | 15" x 7-1/2" | |
| Size of drilling table: | -- | |
| Diameter of column: | 4-1/2" | |
| Overall dimensions: | 32" x 27" x 79" | |
| Base dimension | 26-1/2" x 18" | |
| Motor: | 1-1/2 H.P., 110/220V 1 Phase | |
| Weight: | 850 lbs. |
