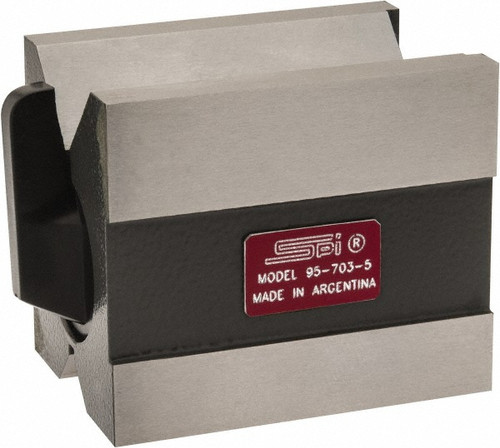

SPI Magnetic Inspection V-Blocks
- Permanent, powerful magnet
- ON and OFF switch
- Two different size 90º Vees for increased capacity
- Precision ground to inspection grade
- Flatness, parallelism and squareness within .0002"
- Some models are hardened to 55 60Rc
Specifications:
| V Angle | 90° | 90° | 90° | 90° | 90° |
| Maximum Capacity of Vee | 1-3/4" | 1-3/4" | 3.94" | 3.94" | 1-3/4" |
| Overall Length | 2-3/8" | 2-3/4" | 3-15/16" | 3-15/16" | 2-3/4" |
| Overall Height | 2" | 2-3/8" | 3-3/4" | 3-3/4" | 2-3/8" |
| Overall Width | 2-3/4" | 2" | 2-3/4" | 2-3/4" | 2" |
| Hardened Steel | 55 - 60 Rc | 55 - 60 Rc | 55 - 60 Rc | ||
| SPI Part Number | 95-701-9 | 95-703-5 | 95-705-0 | 95-707-6 | 95-709-2 (Pair) |
