JET Industrial Bench Grinders IBG Series
Features:
- Heavy duty capacitor motor
- Sealed bearings for maintenance free grinding
- CSA/CUS Certified
- GSA/TAA compliant
- Heavy duty construction for demanding environments
- Power Toggle switch with safety key prevents accidental start-ups
- OSHA Compliant
- Pre-drilled bases for mounting on stands or work benches
Standard Equipment:
- Adjustable safety shields
- 1-1/4" Wheel dresser
- Adjustable tool rests
- Fine and coarse vitrified grinding wheels
- Single dust chute hose
Buy an Industrial Bench Grinder and get a Free LED Work Lamp
Specifications:
| Model | IBG-8 | IBG-10 | IBG-12 |
| Item Number | 578008 | 578010 | 578012 |
| Shaft Diameter | 5/8" | 1" | 1-1/4" |
| Wheel Diameter (Dia. x W) | 8" x 1" | 10" x 1" | 12" x 2" |
| Wheel Speed (RPM) | 3450 | 1720 | 1720 |
| Wheel Grits | 36 / 60 | 36 / 60 | 24 / 46 |
| Dust Port Size | 2-1/2" | 2-1/2" | 2-1/2" |
| Motor (HP) | 1 HP, 115V, 1-Phase | 1-1/2 HP, 115V, 1-Phase | 2 HP, 230V, 1-Phase |
| Amperage | 7 | 10 | 10 |
| Overall Dimensions (L x W x H) | 21" x 13-3/4" x 14" | 24" x 17" x 16" | 27" x 18" x 18" |
| Weight (Lbs.) | 55 | 110 | 238 |
Specs for Stands:
| Model | IGB-Stand | DGB-Stand |
| Item Number | 578172 | 578173 |
| Fits Grinders | 8" & 10" | 10" & 12" |
| Overall Dimensions (L x W x H) | 21-1/2" x 10-3/4" x 33" | 20" x 17" x 33" |
| Net Weight | 80 lbs. | 108 lbs. |

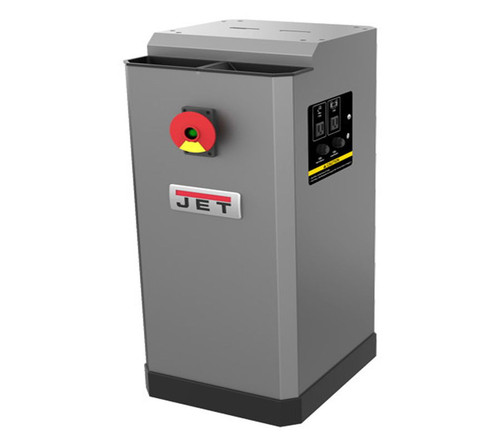

Specs for Metal Dust Collector Stand:
| Model | JDCS-505 |
| Item Number | 414800 |
| Style (Type) | Stand |
| Filter Efficiency | 90% @ 50 Microns |
| Sound Rating (Db.) | 75 db @ 10 ft |
| Static Pressure (Wc.) | 748 |
| Filter Size (W x L x D) | 6-3/4" x 2-5/8" x 13-1/2" |
| Maximum CFM | 472 |
| Maximum Hose Velocity (SFPM) | 3465 |
| Max. Static Pressure (Wc.) | 2440 |
| Port Size | 2 Inlets @ 3" |
| Motor | 1/2 HP, 115V, 60 Hz, 1-Phase, 20A |
| Weight | 110 lbs. |
