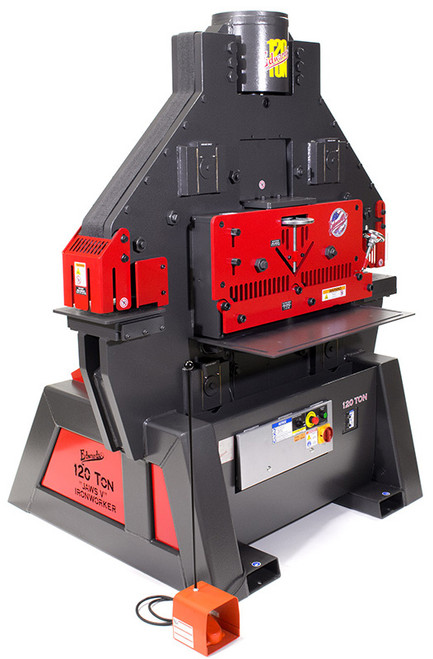

Edwards 120 Ton Ironworkers
Our most powerful Ironworker, the Edwards 120 Ton JAWS Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional tooling accessories allowing you to select the perfect tool for your needs.
Features:
- Five Available Workstations
- Universal Open Tooling Station
- 24" Flat Bar Shear
- Dedicated Coper Notcher
- Electric Stroke Control
- ANSI B11.5-1988R(02) Compliant
- ETL/UL Approved Controls
Specifications:
| PUNCH | | Rating | 120 Tons | | Max. Capacity | 1-1/2" Dia. in 1" A36
(65,000 PSI Tensile) | | Stroke | 2-1/2" | | Throat Depth | 11" | | Open Height | 9-1/8" | | Shut Height | 7" | | Work Height | 36-5/8" | | GENERAL SPECIFICATIONS | | Standard Motor | 10 HP 3~ 208 V or 230 V
1770 RPM 26 A | | Optional Motors | 10 HP 3~ 460 V
1770 RPM 12 A
10 HP 3~ 575 V
1770 RPM 10 A
10 HP 1~ 230 V
1740 RPM 40 A | | Hydraulic Pump | 24 GPM | | Valve Pressure | 3800 PSI | | Reservoir | 17 Gallons | | Cylinder | 2-3/4" Ram | | | FLAT BAR SHEAR | | Max. Capacity | 1/2" x 24"
1" x 12" | | Max. Round | 1-1/4" | | Max. Square | 1-1/4" | | Work Height | 33-1/4" | | ANGLE SHEAR | | Max. Capacity | 6" x 6" x 1/2" | | Work Height | 52-1/2" | | COPER NOTCHER | | Max. Capacity | 3" x 6" x 1/2" | | Work Height | 40" | | OPEN CAVITY | | Height | 9" | | Width | 11-3/4" | | Work Height | 51-3/4" | | DIMENSIONS | | Height | 79-3/8" | | Width | 60" | | Depth | 60" | | Shipping Weight | 5500 lbs. | |
