Dake Arbor Presses - Ratchet Leverage
Designed to work the way it's most comfortable for you. These Ratchet Leverage Arbor Presses feature a handwheel, counter weight and pedestal.

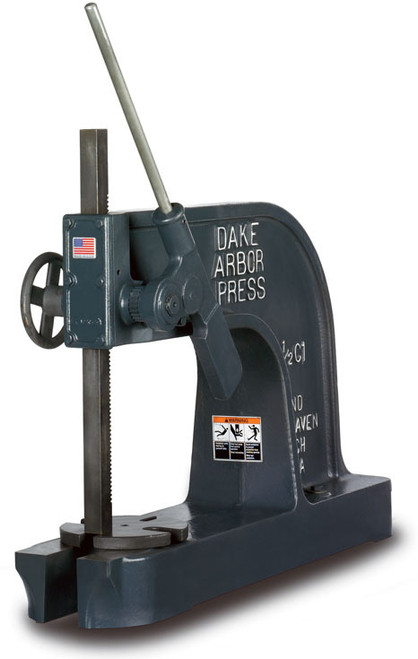

Model 1-1/2 C shown.
3-Ton Models Specifications:
| Model | 1-1/2 | 1-1/2B | 1-1/2C | 1-3/4 |
| number | 902001 | 902002 | 902003 | 902007 |
| capacity (tons) | 3 | 3 | 3 | 3 |
| leverage ratio | 48:1 | 48:1 | 48:1 | 48:1 |
| ram size (inches) | 1-1/4 x 1-1/4 x 16-1/2 | 1-1/4 x 1-1/4 x 24-1/2 | 1-1/4 x 1-1/4 x 24-1/2 | 1-1/4 x 1-1/4 x 16-1/2 |
| maximum diameter work | 14 | 14 | 35 | 14 |
| A throat | 7 | 7 | 17-1/2 | 7 |
| B largest arbor | 2 | 2 | 2 | 2 |
| C capacity over table | 11-1/2 | 18-1/4 | 12 | 11-1/2 |
| D capacity over table plate | 10-3/4 | 17-1/2 | 11-1/4 | 10-3/4 |
| E base length | 7-1/4 | 8-1/4 | 8-1/4 | n/a |
| F base width | 18 | 21 | 37-1/4 | n/a |
| G height (inches) | 19 | 28 | 24-3/8 | 18-1/2 |
| weight (lbs) | 145 | 196 | 425 | 125 |
5-Ton Models Specifications:
| Model | 3A | 4M |
| number | 902004 | 902006 |
| capacity (tons) | 5 | 5 |
| leverage ratio | 55:1 | 55:1 |
| ram size (inches) | 2 x 2 x 23 | 2 x 2 x 23 |
| maximum diameter work | 20 | |
| A throat | 10 | 10 |
| B largest arbor | 4 | 5-1/4 |
| C capacity over table | 16 | 26 |
| D capacity over table plate | 14-1/2 | 24-1/2 |
| E base length | 10 | 21-1/2 |
| F base width | 24 | 29 |
| G height (inches) | 28-1/2 | 58 |
| weight (lbs) | 450 | 1,045 |
