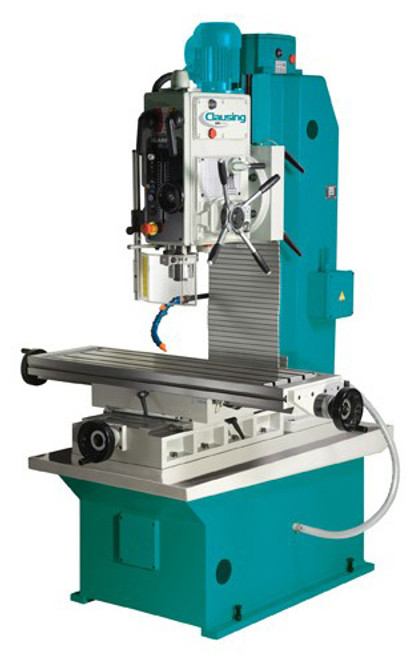

Clausing/Ibarmia Series F Geared-Drive Prismatic-Column Drills
with Electromagnetic Clutch Automatic Feed Control
The F series Industrial Drilling Machine is equipped with standard features that allow a wide range of drilling/milling applications. The rotating head, rotates 45° left or right, gives even more machining flexibility.
Standard Features:
- Drilling capacity in steel: 1.38" (35mm) maximum
- Drilling capacity in cast iron: 1.57" (40mm) maximum
- Milling capacity in steel: 1.80" (45mm) maximum
- Milling capacity in cast iron: 3.20" (80mm) maximum
- Tapping capacity in steel: 1.18" (30mm) maximum
- Tapping capacity in cast iron: 1.30" (33mm) maximum
- 18 spindle speeds
- Automatic feed reversing system for tapping on "RS" models
- Adjustable vertical position of head by geared-motor
- Head rotates 45° left or right of center
- Large worktable with 3 T-slots
- Hardened and ground high quality steel gears
- Gear box lubrication by automatic pump
- Guide ways lubricated by manual pump
- Speed plate and selecting levers on front of head
- High/low speed range selector
- Coolant tank and pump in machine base
- Co-ordinate cross slide table
- Automatic feed and cut-off by electromagnetic clutch
- Work light
- Front hand wheel for fine feed work
- Depth scale and adjustable depth stop
- Built-in low voltage electrical equipment in column rear
- Emergency STOP
- Spindle turn selection switch
- Drill guard with microswitch
Click to View Optional Equipment
Specifications:
| Standard Models | BF-35 |
| Auto feed reversing for tapping models | BF-35RS |
| Capacities | |
| Maximum drilling capacity in steel | 1.38" (35mm) |
| Maximum drilling capacity in cast iron | 1.57" (40mm) |
| Maximum milling capacity in steel | 1.80" (45mm) |
| Maximum milling capacity in cast iron | 3.20" (80mm) |
| Maximum tapping capacity in steel | 1.18" (30mm) |
| Maximum tapping capacity in cast iron | 1.3" (33mm) |
| Specifications | |
| Spindle taper | ISO-30 |
| Optional spindle taper (on request) | 4MT |
| Quill diameter | 2.95" (75mm) |
| Spindle travel (drilling depth) | 7.87" (200mm) |
| Main motor power | 1.5/2 Hp (1.1/1.5Kw) |
| Coolant pump motor power | .12 Hp (.09Kw) |
| Head geared-motor power | .1 Hp (.07Kw) |
| Number of speeds (see speed charts) | 18 |
| Number of automatic feeds | 3 |
| Auto feed range in./rev. (mm/rev.) | .0039/.0079/.118 (.1/.2/.3) |
| Dimensions and Weights | |
| Height (A) | 81.9" (2130mm) |
| Overall length (B) | 57.1" (1450mm |
| Spindle to table (C) | |
| Minimum | 0" |
| Maximum | 23.23" (590mm) |
| Spindle center to column (D) | 15.08" (383mm) |
| Maximum head height (E) | 94.5" (2400mm) |
| Worktable width (F) | 14.17" (360mm) |
| Worktable height (G) | 35.43" (900mm) |
| Worktable length (H) | 47.24" (1200mm) |
| Base width (I) | 29.53" (750mm) |
| Overall width (J) | 61.81" (1570mm) |
| X travel | 27.56" (700mm) |
| Y travel | 14.17" (360mm) |
| Net weight | 2,756 lbs (1250Kg) |
| Shipping weight | 3,197 lbs (1450Kg) |
| Shipping dimension (length x width x height) | 67" x 67" x 95" (1.7x1.7x2.4m) |
* "RS" models are equipped with automatic feed reversing system for tapping.
