Belt Drive Mill/Drill Machine OT25020 - 87-115-929
Great for a variety of drilling, face milling and end milling applications
Features:
- R8 spindle taper
- Pre-wired for worklight
Includes:
- Drawbar
- Drill chuck and arbor
- Wrench
**STAND NOT INCLUDED**
Specifications:
| Item Number | 87-115-929 |
| MODEL | OT25020 |
| DESCRIPTION | X2 Mini Milling Machine |
| DIMENSIONS | 34.64"L x 30.31"W x 44.88"H |
| POWER | 3/4 HP |
| DISTANCE FROM SPINDLE NOSE TO TABLE |
17.13" (435mm) |
| DRILLING CAPACITY | 0.78" (20mm) |
| END MILLING CAPACITY | 0.78" (20mm) |
| FACE MILLING CAPACITY | 2.48" (63mm) |
| HORSEPOWER | 3/4 HP |
| MACHINE TYPE | Mill/Drill |
| MINIMUM DISTANCE FROM SPINDLE AXIS TOP COLUMN |
7.15" (181.5mm) |
| OVERALL HEIGHT | 41.73" without stand |
| PHASE | 1 PH |
| POWER ENGINE | 1/2 HP |
| QUILL DIAMETER | 2.44" (62mm) |
| SPINDLE TRAVEL | 4.72" (120mm) |
| STEP OF SPINDLE | 12 |
| SPEED RANGE | 0 ~ 2500 RPM |
| SWING DIAMETER OF HEADSTOCK |
15.94" (405mm) |
| SPINDLE RANGE | -45° to +45° |
| SPINDLE TAPER | R8 |
| SWIVEL ANGLE OF HEADSTOCK |
360° |
| T SLOT | 0.47" (12mm) |
| T SLOT SIZE | 0.47" (12mm) |
| TABLE DIMENSIONS | 6.3" x 20.47" |
| TRAVEL | Headstock: 7.08" (180mm) |
| TRAVEL OF TABLE FORWARD & BACKWARD |
3.93" (100mm) |
| TRAVEL OF TABLE RIGHT & LEFT |
8.66" (220mm) |
| VOLTAGE | 110V |
| WEIGHT | 406 lbs. |
| SHIPPING RESTRICTIONS | TRUCK SHIP ONLY (FIXED FREIGHT CHARGE) |

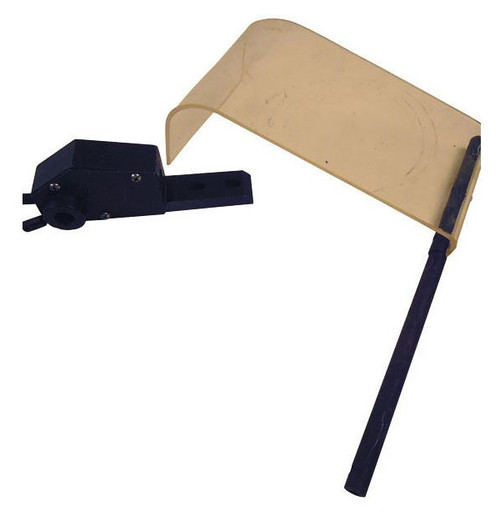

See all accessories for the Belt Drive Mill/Drill Machine OT25020
