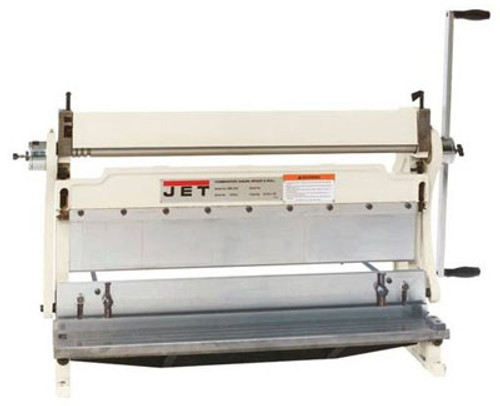

JET 30" 3 in 1 Shear Brake and Roll
Features:
- COMBINATION SHEAR, BRAKE AND ROLL
- Combination shear, brake and roll in one compact machine
- Right or left hand operation
- Shear can be used for mild steel, aluminum, brass, copper, lead, plastic and zinc
- Brake is equipped with easily removable fingers that permit angle, channel, box and other complex bending operations
- Slip rolls are precision turned and ground with wire grooves
- Spring-loaded work hold down
- Back gauge
- Dual edge shear blade
Specifications:
| Brand | Jet |
| Overall Dimensions | 42-1/2 x 21-1/2 x 24 |
| Height | 27 inch |
| Width | 17 inch |
| Length | 40 inch |
| Net Weight | 290 pound |
| Gross Weight | 319 pound |
| Width of upper Dies (in.) | 1, 2, 3, 4, 4, 6, 10 |
| Upper Die Height (in.) | 4-3/4 |
| Min. Forming Radius (in.) | 3/4 |
| Wire Grooves (in.) | 1/8, 3/16, 1/4 |
| Number and Diameter of Rolls (in.) | 3 and 1-1/2 |
| Mild Steel Capacity (Gauge/in.) | 20 |
| Base Dimensions | 14-1/2 x 32-3/8 |
| Bending Capacity | 20 x 30 |
| Rolling Capacity | 20 x 30 |
| Shearing Capacity | 20 x 30 |
| Size of Slip Roll (in./L x W) | 30 x 1-1/2 |
JET 30" 3 in 1 Shear Brake and Roll SBR-30M
