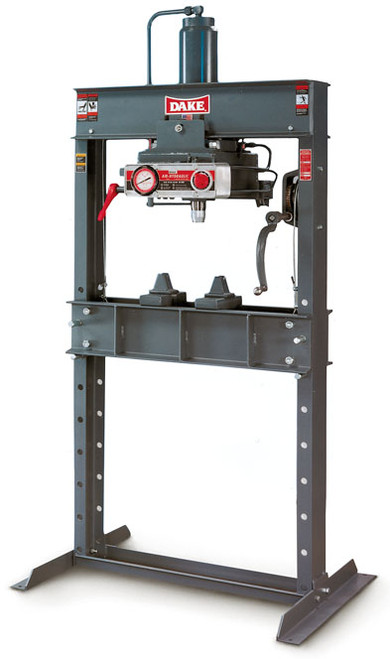

Dake Hydraulic Press, Air Operated, 25 Ton, Double Air Pump - 6-425
- Air operation eliminates the need for hand pumping
- Safety valve protects against overloads
- Movable workhead is roller mounted on ball bearings for off-center work
- Dual air pumps, for faster pressing speeds, available on some models
- Rapid ram approach quickly moves ram to work to save production time
- Stroke indicator ensures accurate ram control
- By-pass hole eliminates excessive ram extension
- Adjustable table permits easy vertical movement by means of self-locking hoist
Standard Equipment:
- Frame
- Two forged steel V-blocks
- Flat ram nose
- Stroke indicator
- Safety relief valve
- Workhead
- Two forged steel table plates
- V-ram nose (N/A on 25 ton model)
- Pressure gauge
- Self-locking table hoist
Specifications:
| model | 6-425 |
| number | 906425 |
| capacity (tons) | 25 |
| ram speed-advance | 100 |
| ram speed-press | 10 |
| number of pumps | 2 |
| air pressure (lbs) | 90-125 |
| A width between uprights | 33-1/2 |
| B width between table channels | 5-3/16 |
| C minimum ram to table | 1 |
| D maximum ram to table | 36 |
| E ram travel | 10 |
| F horizontal workhead travel | 13-1/2 |
| JxK base (inches) | 42-1/2x30 |
| L height (inches) | 81 |
| weight (lbs) | 800 |
