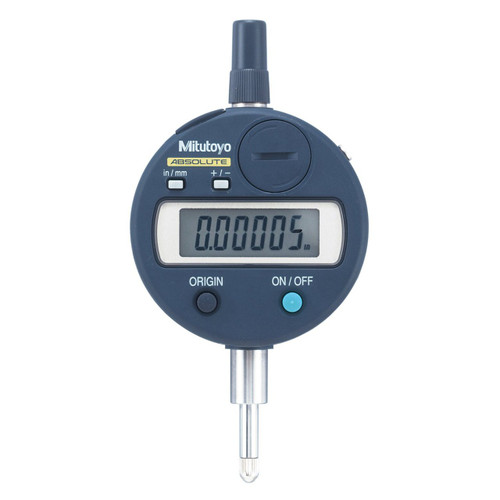

Mitutoyo ABSOLUTE Digimatic Indicator ID-S Series 543 with Simple Design - 543-792
Features:
- As compact as standard Series 2 dial indicators
- After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
- Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
- SPC data output
Technical Data:
| Accuracy | Refer to the list of specifications. |
| Resolution | 0.01mm 0.001mm .0005"/0.01mm .0001"/0.001mm or .00005"/0.001mm |
| Display | LCD |
| Length standard | ABSOLUTE electrostatic capacitance type linear encoder |
| Max. response speed | Unlimited |
| Measuring force | Refer to the list of specifications |
| Battery | SR44 (1 pc.), 938882 |
| Battery life | Approx. 20,000 hours under normal use |
| Dust/Water protection level | IP42 (IP53:543-794, 543-795, 543-796) |
| Function | Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only) |
| Alarm | Low voltage, Counting value composition error, Over-flow error |
Optional Accessories:
| Type | Inch/Metric (ANSI/AGD) Stem dia. 3/8” , #4-48 UNF Thread |
| Accessory | Item Number |
| Back-Lug | 101306 |
| Back-Flat | 101039 |
| Lifting Lever | 21EZA199 |
| Lifting Cable | 540774 |
| Lifting Knob | 21EZA150 |
| Connecting Cable 1m | 905338 |
| Connecting Cable 2m | 905409 |
| SR44 Battery | 938882 |
See all Mitutoyo ABSOLUTE Digimatic Indicators ID-S Series 543 with Simple Design
Indicator w/ Lug Back
