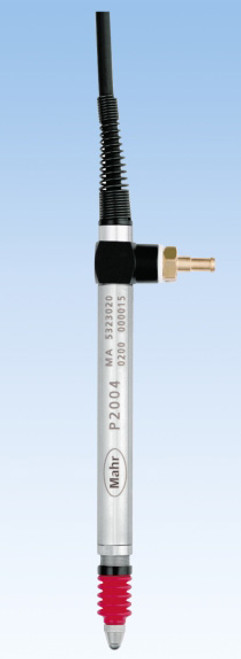

Mahr/Federal Millimar Inductive Measuring Probe P2004 A - 5323024

Millimar P2004 A Inductive Probes

Models with or without a compressed air (pneumatic) lifter or with vacuum retraction
Measuring pin mounted in ball-bearing guide
High linearity over the entire measuring range
Excellent electromagnetic shielding (EMC)
All probes can be easily converted from axial to radial by mounting a slip on cap, included in the scope of supply

P2004 A Specifications:

Item Number	5323020	5323021	5323023	5323024
Compatibility	Mahr-VLDT	Tesa	Marposs	Federal
Measuring range from	-2 mm
Measuring range up to	2 mm
Distance of lower stop MIN	-2.2 mm
Distance of lower stop MAX	0 mm
Distance of upper stop MIN	2.2 mm
Distance of upper stop MAX	4.4 mm
Lifter / retraction	Vacuum Lifter
Measuring force	0,75 N +/- 0,15 N
Increase in measuring force	0,2 N/mm
Sensitivity deviation	0.3 %
Repeatability fw (µm)	0.1 µm
Hysteresis fu (µm)	0.5 µm
Linearity deviation within +/- 0,5 mm	0.4 µm
Linearity deviation within +/- 1,0 mm	1.5 µm
Linearity deviation within +/- 2,0 mm	3 µm
IP protection category	IP 64
Cable length	2.5 m
Working temperature	20 °C
Working temperature MIN	10 °C
Working temperature MAX	55 °C
Operating temperature Min	-10 °C
Operating temperature Max	80 °C
Temperature coefficient	0.15 µm/°C

Inductive Measuring Probe
