Mitutoyo Three/Two-Point Internal Holtest Micrometers, Series 368

Mitutoyo Three/Two-Point Internal Holtest Micrometers, Series 368

$539.10 - $4,374.00
BUY NOW

Customer Reviews - 0 reviews

Item # Description Price Quantity
368-917 Holtest Micrometer SET - 0.5" - 0.8" $1,341.00

368-918 Holtest Micrometer SET - 0.8" - 2.0" $3,069.00

368-919 Holtest Micrometer SET - 2" - 4" $4,374.00

368-022 Range: .1-.12" | Accuracy: 0.0001" $1,350.00

368-023 Range: .12-.16" | Accuracy: 0.0001" $1,089.00

368-024 Range: .16-.2" | Accuracy: 0.0001" $1,089.00

368-025 Range: .2-.24" | Accuracy: 0.0001" $1,089.00

368-026 Range: .24-.28" | Accuracy: 0.0001" $1,089.00

368-261 Range: .275-.35" | Accuracy: 0.0001" $539.10

368-262 Range: .35-.425" | Accuracy: 0.0001" $539.10

368-263 Range: .425-.5" | Accuracy: 0.0001" $539.10

368-264 Range: .5-.65" | Accuracy: 0.0001" $558.90

368-265 Range: .65-.8" | Accuracy: 0.0001" $558.90

368-021 Range: .8-1" | Accuracy: 0.0001" $1,350.00

368-266 Range: .8-1" | Accuracy: 0.00015" $580.50

368-267 Range: 1-1.2" | Accuracy: 0.00015" $580.50

368-268 Range: 1.2-1.6" | Accuracy: 0.00015" $725.40

368-269 Range: 1.6-2" | Accuracy: 0.00015" $765.00

368-280 Range: 10-11" | Accuracy: 0.00025" $1,782.00

368-281 Range: 11-12" | Accuracy: 0.00025" $1,827.00

368-270 Range: 2-2.5" | Accuracy: 0.00015" $769.50

368-271 Range: 2.5-3" | Accuracy: 0.00015" $835.20

368-272 Range: 3-3.5" | Accuracy: 0.00015" $857.70

368-273 Range: 3.5-4" | Accuracy: 0.00015" $897.30

368-274 Range: 4-5" | Accuracy: 0.00025" $1,152.00

368-275 Range: 5-6" | Accuracy: 0.00025" $1,305.00

368-276 Range: 6-7" | Accuracy: 0.00025" $1,341.00

368-277 Range: 7-8" | Accuracy: 0.00025" $1,386.00

368-278 Range: 8-9" | Accuracy: 0.00025" $1,575.00

368-279 Range: 9-10" | Accuracy: 0.00025" $1,764.00

Mitutoyo

Mitutoyo Three/Two-Point Internal Holtest Micrometers, Series 368

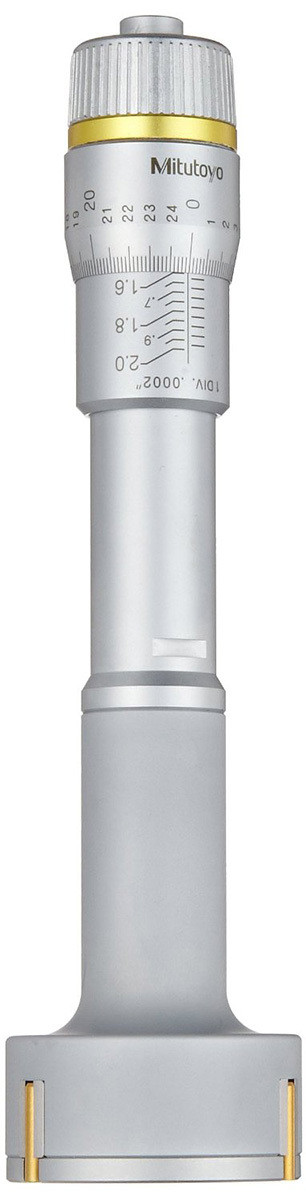

These Holtests are versatile, self-centering three-point internal micrometers for the accurate and efficient direct-measurement of internal diameters. Three anvils, evenly spaced at 120° apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement.


Features:

  • TiN-coated measuring contact points(over 6mm/.275" range models) provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.
  • Highly durable because of carbide-tipped contact points (anvils)
  • Measurement can be taken closer to the bottom of the blind bore
  • Can measure deep holes using an Extension rod (optional) which is available on models over 6mm (.275") measuring range
  • With Ratchet Stop for constant force
  • Setting Rings for zero point adjustment are optional
  • Supplied in fitted plastic case up to 100mm / 4”. Over 100mm / 4” supplied in wooden case


Technical Data:

  • Graduation: 0.001mm, 0.005mm*,
    .0001" or .0002"* (*over 12mm or .5” models)


Optional Accessories:

  • # 952322: Extension rod 100mm / 3.94" For range 6-12mm / .275" - .5" models
  • # 952621: Extension rod 150mm / 5.9" For range 12-20mm / .5" - .8" models
  • # 952622: Extension rod 150mm / 5.9" For range 20-50mm / .8" - 2" models
  • # 952623: Extension rod 150mm / 5.9" For range 50-300mm / 2" - 12" models


Holtest Micrometer SETS:


# 368-917: 0.5" - 0.8"

  • Individual Ranges: 0.5 - 0.65" // 0.65 - 0.8"
  • Setting Rings Included: 0.65" DIA.

# 368-918: 0.8" - 2.0"

  • Individual Ranges: 0.8 - 1.0" // 1.0 - 1.2" // 1.2 - 1.6" // 1.6 - 2.0"
  • Setting Rings Included: 1" DIA., 1.6" DIA.

# 368-919: 2" - 4"

  • Individual Ranges: 2.0 - 2.5" // 2.5 - 3.0" // 3.0 - 3.5" // 3.5 - 4.0"
  • Setting Rings Included: 2.5" DIA., 3.5" DIA.


Specifications:


Item Number Description Range: Head Assy Order No.: Accuracy: Remarks:

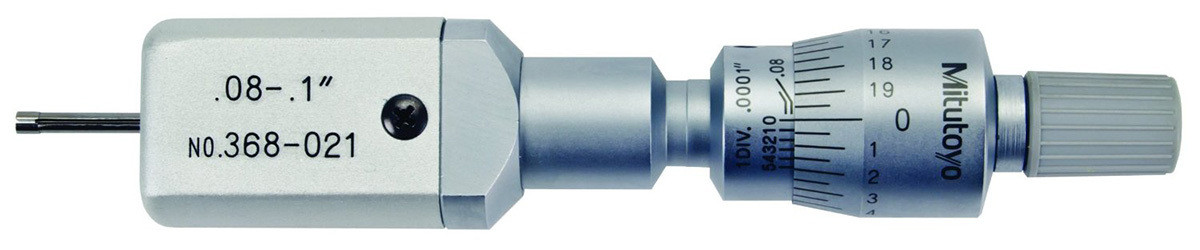

368-021 Holtest Micrometer 0.8" - 1.0" - 0.0001" Carbide Contact Point
368-022 Holtest Micrometer 0.1" - 0.12" - 0.0001" Carbide Contact Point
368-023 Holtest Micrometer 0.12" - 0.16" - 0.0001" Carbide Contact Point
368-024 Holtest Micrometer 0.16" - 0.2" - 0.0001" Carbide Contact Point
368-025 Holtest Micrometer 0.2" - 0.24" - 0.0001" Carbide Contact Point
368-026 Holtest Micrometer 0.24" - 0.28" - 0.0001" Carbide Contact Point
368-261 Holtest Micrometer 0.275" - 0.35" 04AZB139 0.0001" Titanium Coated Contact Points
368-262 Holtest Micrometer 0.35" - 0.425" 04AZB140 0.0001" Titanium Coated Contact Points
368-263 Holtest Micrometer 0.425" - 0.5" 04AZB141 0.0001" Titanium Coated Contact Points
368-264 Holtest Micrometer 0.5" - 0.65" 04AZA721 0.0001" Titanium Coated Contact Points
368-265 Holtest Micrometer 0.65" - 0.8" 04AZA722 0.0001" Titanium Coated Contact Points
368-266 Holtest Micrometer 0.8" - 1.0" 04AZA730 0.00015" Titanium Coated Contact Points
368-267 Holtest Micrometer 1.0" - 1.2" 04AZA731 0.00015" Titanium Coated Contact Points
368-268 Holtest Micrometer 1.2" - 1.6" 04AZA739 0.00015" Titanium Coated Contact Points
368-269 Holtest Micrometer 1.6" - 2.0" 04AZA740 0.00015" Titanium Coated Contact Points
368-270 Holtest Micrometer 2.0" - 2.5" 04AZA754 0.00015" Titanium Coated Contact Points
368-271Holtest Micrometer 2.5" - 3.0" 04AZA755 0.00015" Titanium Coated Contact Points
368-272 Holtest Micrometer 3.0" - 3.5" 04AZA756 0.00015" Titanium Coated Contact Points
368-273 Holtest Micrometer 3.5" - 4.0" 04AZA757 0.00015" Titanium Coated Contact Points
368-274 Holtest Micrometer 4" - 5" 04AZA783 0.00025"Titanium Coated Contact Points
368-275 Holtest Micrometer 5" - 6" 04AZA784 0.00025" Titanium Coated Contact Points
368-276 Holtest Micrometer 6" - 7" 04AZA785 0.00025" Titanium Coated Contact Points
368-277 Holtest Micrometer 7" - 8" 04AZA786 0.00025" Titanium Coated Contact Points
368-278 Holtest Micrometer 8" - 9" 04AZA787 0.00025" Titanium Coated Contact Points
368-279 Holtest Micrometer 9" - 10" 04AZA788 0.00025" Titanium Coated Contact Points
368-280 Holtest Micrometer 10" - 11" 04AZA789 0.00025" Titanium Coated Contact Points
368-281 Holtest Micrometer 11" - 12" 04AZA790 0.00025" Titanium Coated Contact Points
368-917 Holtest Micrometer SET 0.5" - 0.8" - - Titanium Coated Contact Points, Ext Rod
368-918 Holtest Micrometer SET 0.8" - 2.0" - - Titanium Coated Contact Points, Ext Rod
368-919 Holtest Micrometer SET 2" - 4" - - Titanium Coated Contact Points, Ext Rod
