Defelsko PosiTector 200 Coating Thickness Gages

Defelsko PosiTector 200 Coating Thickness Gages

$45.00 - $2,695.00
BUY NOW

Customer Reviews - 0 reviews

Item # Description Price Quantity
GELP 4 oz. Ultrasonic Gel (Case of 12) $170.00

USBAC AC Power Kit $45.00

PRB200B B Probe Only $1,615.00

PRB200C C Probe Only $1,815.00

PRB200D D Probe only $2,015.00

PSOFT200 PosiSoft Software $95.00

200BADV PosiTector 200 with B Probe (Advanced) $2,295.00

200BSTD PosiTector 200 with B Probe (Standard) $1,895.00

200CADV PosiTector 200 with C Probe (Advanced) $2,495.00

200CSTD PosiTector 200 with C Probe (Standard) $2,095.00

200DADV PosiTector 200 with D Probe (Advanced) $2,695.00

200DSTD PosiTector 200 with D Probe (Standard) $2,295.00

Defelsko

Defelsko PosiTector 200 Coating Thickness Gages


The PosiTector 200 non-destructively measures a wide variety of applications using proven ultrasound technology. Measures coating thickness over wood, concrete, plastics, composites, metals and more. Advanced models measure up to 3 individual layer thicknesses in a multi-layer system and features a graphic readout for detailed analysis of the coating system.


Simple:
  • Ready to measure - no adjustment required to measure most coatings
  • Enhanced one-handed menu navigation
  • Flashing display - ideal for noisy environment
  • RESET feature instantly restores factory settings

Durable:
  • Solvent, acid, oil, water and dust resistant – weatherproof
  • Shock-absorbing, protective rubber holster with belt clip
  • Two (2) year warranty on body AND probe

Accurate:
  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
  • Responsive transducers provide fast, accurate readings
  • Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile:

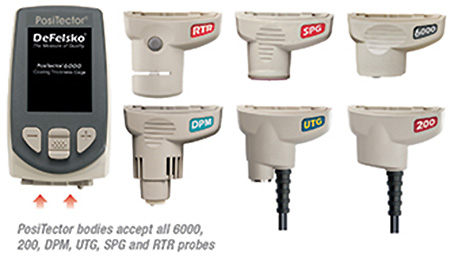

  • PosiTector body accepts all PosiTector 6000, 200, DPM, UTG, RTR and SPG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage [View Video]
  • Hi Contrast backlit display for bright or dark environments
  • Mils/Microns switchable
  • Selectable display languages
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

Powerful:
  • Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft solutions for viewing, analyzing & reporting data:
    - PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
    - PosiSoft.net account - a free web-based application offering secure storage of thickness readings
    - PosiSoft 3.0 - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download.
    - PosiSoft Mobile - (Advanced models only) - access readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computers
  • Screen Capture - record and save image into USB flash memory for record keeping and review
  • Every stored measurement is date and time stamped
  • Software updates via web keep your gage current

Standard Models:

Includes ALL features shown above plus...



  • Monochrome display with transflective technology enhances viewability in direct sunlight
  • Storage of 250 readings in one group – stored readings can be viewed or downloaded

Advanced Models:

Includes ALL features shown above plus...
  • Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system. Also features graphic readout for detailed analysis of the coating system.
  • Graphics mode with screen capture
  • Hi Contrast reversible color LCD
  • Storage of 100,000 readings in up to 1,000 batches and sub-batches
  • Store thickness, profile, environmental and wall thickness measurements in individual batches
  • Onscreen Batch Annotation -add notes, change batch names, and more with the new built‐in QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality
  • PosiSoft Mobile - gage-based software application allows access to readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computers
  • Bluetooth Wireless Technology for data transfer to a computer or optional portable printer [View Video]
  • Onscreen help, Real time graphing, picture prompting, and more..



Advanced models measure up to 3 individual layers with graphics & charts



WiFi on PosiTector Advanced models to wirelessly synchronize with PosiSoft.net, download software updates, and connect to mobile devices for expanded functionality

Body Comparison Chart Standard Advanced

General Features Standard Advanced
Accepts all coating thickness (6000/200/PC), environmental (DPM), surface profile (RTR/SPG), and ultrasonic wall thickness (UTG) probes. X X
Hi Contrast LCD Display Monochrome Color
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring X X
Measure total thickness of a coating system X X
Measure up to 3 individual layer thicknesses in a multi-layer coating system   X
Graphics mode for detailed analysis of the coating system   X
Memory Features & Capacity Standard Advanced
Reading Storage Capacity 250 in one group 100,000 in up to 1000 groups
Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard.   X
Real Time Graphing, Picture Prompting, Batch Notes and Onscreen help   X
Connection Options Standard Advanced
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included X X
WiFi technology - allows the PosiTector to connect to a WiFi network to wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality   X
Wireless Access Point - directly connect your smart device (phone/tablet) or WiFi-enabled computer to a PosiTector Advanced body without the need for WiFi network access or a Mobile Hotspot.   X
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer   X


Ordering Guide:

PosiTector
200
B /
Standard
B /
Advanced
C /
Standard
C /
Advanced
D /
Standard
D /
Advanced

Order Code 200BSTD 200BADV 200CSTD 200CADV200DSTD 200DADV
Included
Body
Standard Advanced Standard Advanced Standard Advanced
Included
Probe
PRB200B PRB200C PRB200D
Typical
Applications
Polymer coating on wood, plastic, etc. Coatings on concrete, fiberglass, etc. Thick, soft coatings like polyurea, asphaltic neoprene, very thick polymers
Measures
Total
Thickness
X X X X X X
Measures
Individual
Layers**
  X   X   X
Measurement
Range*
13 to 1000 μm
0.5 to 40 mils
13 to 1000 μm
0.5 to 40 mils
50 to 3800 μm
2 to 150 mils
50 to 3800 μm
2 to 150 mils
50 to 7600 μm
2 to 300 mils
50 to 7600 μm
2 to 300 mils
Accuracy + (2 μm + 3% of reading)
+ (0.1 mils + 3% of reading)
+ (20 μm + 3% of reading)
+ (1 mils + 3% of reading)
Minimum
Individual
Layer
Thickness**
  13 μm, 0.5 mils   13 μm, 0.5 mils   13 μm, 0.5 mils
Certified
Thickness
Standard
STDA3 STDP6 STDP1


* Range limits apply to polymer based coatings only. D probe polyurea range is 50 to 5000 μm (2 to 200 mils)
** For multiple layer applications only. Dependent on material to be tested

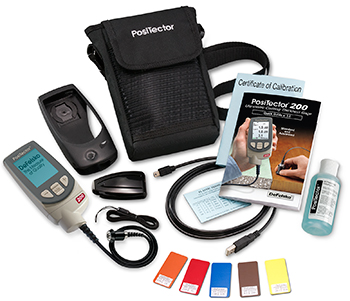

ALL GAGES COME COMPLETE with body and probe, couplant (ultrasonic gel), precision plastic shim(s), protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, PosiSoft.net account, two (2) year warranty.

SIZE: 135 x 61 x 28 (5.25” x 2.4” x 1.1”)

WEIGHT: 140 g (4.9 oz.) without batteries

CONFORMS TO: ASTM D6132 and ISO 2808

Probe Guide:

PosiTector 200 Probes B C D

Order Code PRB200B PRB200C PRB200D
Typical Applications Polymer coating on wood, plastic, etc. Coatings on concrete, fiberglass, etc. Thick, soft coatings like polyurea, asphaltic neoprene, very thick polymers
Measurement Range* 13 to 1000 μm, 0.5 to 40 mils 50 to 3800 μm, 2 to 150 mils 50 to 7600 μm, 2 to 300 mils
Accuracy ± (2 μm + 3% of reading)
± (0.1 mils + 3% of reading)
± (20 μm + 3% of reading)
± (1 mils + 3% of reading)
Advanced Models: Minimum Individual Layer Thickness** 13 μm, 0.5 mils 50 μm, 2 mils 500 μm, 20 mils



Click to view PosiTector 200 Instruction Manual
